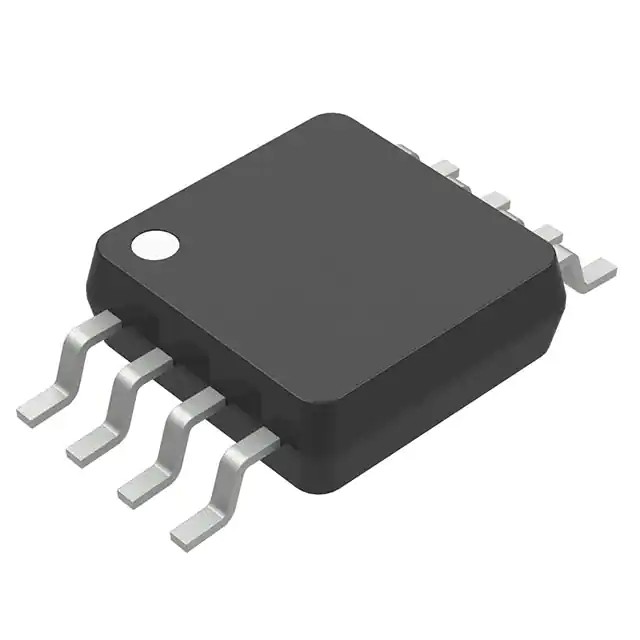

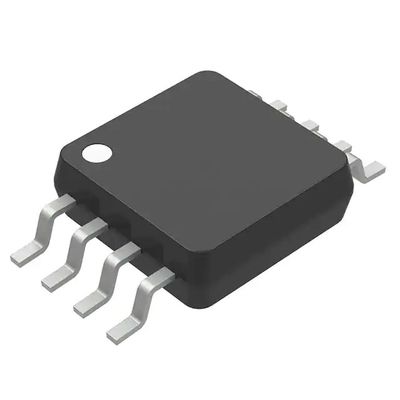

INA326EA/2K5 / Instrumentation Amplifiers Precision Lo-Drift CMOS
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Instrumentation Amplifiers |
| RoHS: | Details |
| INA326 | |
| 1 Channel | |
| 1 kHz | |
| - | |
| 100 dB | |
| 2 nA | |
| 100 uV | |
| 5.5 V | |
| 2.7 V | |
| 2.4 mA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| VSSOP-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Gain Error: | 0.01 % |
| Gain V/V: | 80 dB |
| GBP - Gain Bandwidth Product: | 1 kHz |
| Height: | 0.97 mm |
| Length: | 3 mm |
| Maximum Input Resistance: | 10 GOhms |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 5.5 V |
| Product: | Instrumentation Amplifiers |
| Product Type: | Instrumentation Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 93.98 dB |
|
Factory Pack Quantity: |
2500 |
| Subcategory: | Amplifier ICs |
| Width: | 3 mm |
| Unit Weight: | 0.000917 oz |
DESCRIPTION
The INA326 and INA327 (with shutdown) are high-performance, low-cost, precision instrumentation amplifiers with rail-to-rail input and output. They are true single-supply instrumentation amplifiers with very low DC errors and input common-mode ranges that extends beyond the positive and negative rails. These features make them suitable for applications ranging from general-purpose to high-accuracy. Excellent long-term stability and very low 1/f noise assure low offset voltage and drift throughout the life of the product. The INA326 (without shutdown) comes in the MSOP-8 package. The INA327 (with shutdown) is offered in an MSOP-10. Both are specified over the industrial temperature range, –40°C to +85°C, with operation from –40°C to +125°C.
