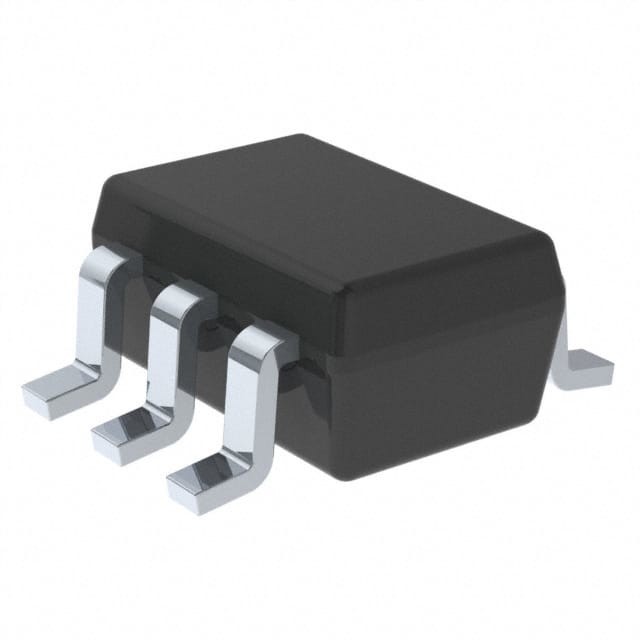

INA199B1DCKR / SC70-6 / Current Sense Amplifiers
The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precisioncurrent measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at commonmode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All versions are specified from –40°C to 125°C, and offered in both SC70-6 and thin UQFN10 packages.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Current Sense Amplifiers |
| INA211 | |
| 1 Channel | |
| 80 kHz | |
| 12 V | |
| 120 dB | |
| 28 uA | |
| 5 uV | |
| 26 V | |
| 2.7 V | |
| 115 uA | |
| 0.03 % | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SC70-6 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Low-Side/High-Side Current Sense Amplifier |
| Brand: | Texas Instruments |
| Features: | Bi-directional, Low-side Capable |
| Gain V/V: | 50 V/V |
| Moisture Sensitive: | Yes |
| Product: | Current Sense Amplifiers |
| Product Type: | Current Sense Amplifiers |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Amplifier ICs |
| Unit Weight: | 0.001270 oz |
