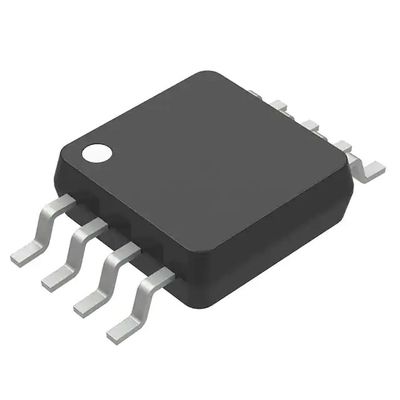

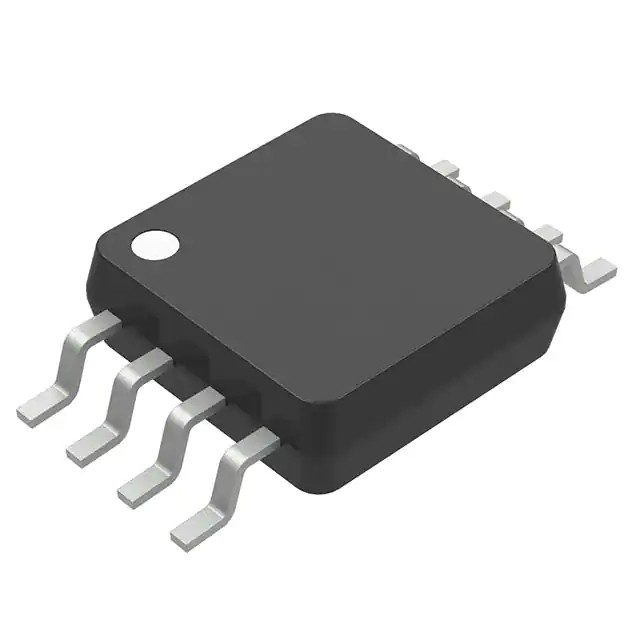

TLV6002IDGKR / Operational Amplifiers - Op Amps 2-Channel, 1-MHz
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | Details |
| SMD/SMT | |
| VSSOP-8 | |
| 2 Channel | |
| 5.5 V | |
| 1 MHz | |
| 15 mA | |
| 500 mV/us | |
| 4.5 mV | |
| 1.8 V | |
| - 40 C | |
| + 125 C | |
| 1 pA | |
| 75 uA | |
| No Shutdown | |
| 76 dB | |
| 28 nV/sqrt Hz | |
| TLV6002 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Operational Amplifier |
| Brand: | Texas Instruments |
| Features: | Cost Optimized, EMI Hardened |
| Input Type: | Rail-to-Rail |
| Ios - Input Offset Current: | 1 pA |
| Moisture Sensitive: | Yes |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 86 dB |
|
Factory Pack Quantity: |
2500 |
| Subcategory: | Amplifier ICs |
| Unit Weight: | 0.000705 oz |
FEATURES
• Precision Amplifiers for Cost-Sensitive Systems
• Low Quiescent Current: 75 µA/ch
• Supply Range: 1.8 V to 5.5 V
• Input Voltage Noise Density: 28 nV/√Hz at 1 kHz
• Rail-to-Rail Input and Output
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 1 pA
• Low Offset Voltage: 0.75 mV
• Unity-Gain Stable
• Internal RF and EMI Filter
• Extended Temperature Range: –40°C to +125°C
APPLICATIONS
• Industrial and Consumer Electronics
• Portable Equipment
• Portable Blood Glucose Systems
• Smoke Detectors
• White Goods
• Power Banks
