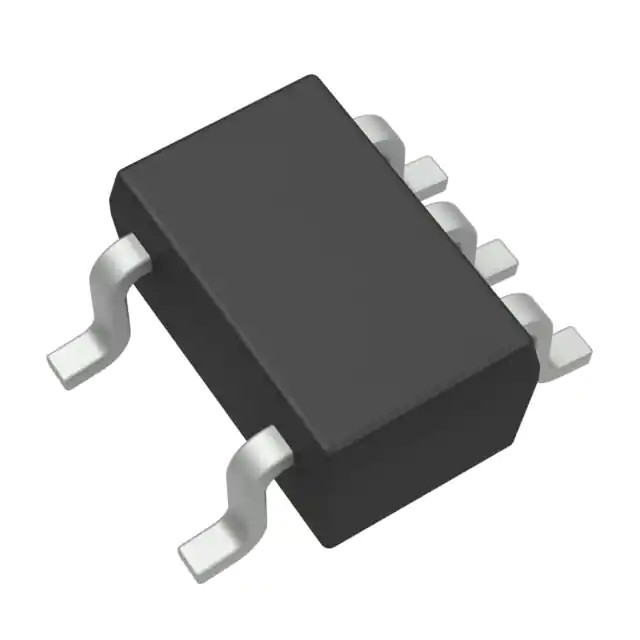

LMV831MGX/NOPB / Operational Amplifiers - Op Amps Single 3.3 MHz Low Power CMOS
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | Details |
| SMD/SMT | |
| SC-70-5 | |
| 1 Channel | |
| 5.5 V | |
| 3.3 MHz | |
| 66 mA | |
| 2 V/us | |
| 1 mV | |
| 2.7 V | |
| - 40 C | |
| + 125 C | |
| 10 pA | |
| 250 uA | |
| No Shutdown | |
| 93 dB | |
| 12 nV/sqrt Hz | |
| LMV831 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | LMV831MGEVAL |
| Features: | Small Size, EMI Hardened |
| Height: | 0.9 mm |
| In - Input Noise Current Density: | 0.005 pA/sqrt Hz |
| Input Type: | Rail-to-Rail |
| Length: | 2 mm |
| Operating Supply Voltage: | 3 V, 5 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 76 dB |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single |
| Technology: | CMOS |
| Voltage Gain dB: | 130 dB |
| Width: | 1.25 mm |
| Unit Weight: | 0.000705 oz |
Features
• Unless Otherwise Noted, Typical Values at TA= 25°C, V + = 3.3 V
• Supply Voltage 2.7 V to 5.5 V
• Supply Current (per Channel) 240 µA
• Input Offset Voltage 1-mV Maximum
• Input Bias Current 0.1 pA
• GBW 3.3 MHz
• EMIRR at 1.8 GHz 120 dB
• Input Noise Voltage at 1 kHz 12 nV/√Hz
• Slew Rate 2 V/µs
• Output Voltage Swing Rail-to-Rail
• Output Current Drive 30 mA
• Operating Ambient Temperature Range −40°C to 125°C
