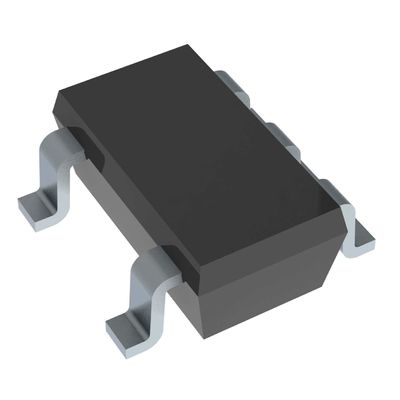

LP3985IM5-2.5/NOPB / SOT-23-5 / LDO Voltage Regulators
The LP3985 is designed for portable and wirelessapplications with demanding performance and spacerequirements.LP3985 performance is optimized folbattery-powered systems to deliver ultra low noiseextremely low dropout voltage, and low quiescentcurrent. Regulator ground current increases onlyslightly in dropout, further prolonging the battery life.
The LP3985 is stable with a small 1-uF +30%ceramic or high-quality tantalum output capacitor. TheDSBGA requires the smallest possible PC board area- the total application circuit area can be less than 2mm x 2.5 mm, a fraction of a 1206 case size
An optional external bypass capacitor reduces theoutput noise without slowing down the load transientresponse. Fast startup time is achieved by utilizing aninternal power-on circuit that actively pre-charges thebypass capacitor.
Power supply rejection is better than 50 dB at lowfrequencies and starts to roll off at 1 kHz. High powersupply rejection is maintained down to low inputvoltage levels common to battery operated circuits.
The device is ideal for mobile phone and similarbattery-powered wireless applications. lt provides upto 150 mA, from a 2.5-V to 6-V input. The LP3985consumes less than 1.5 UA in disable mode and hasfast turn-on time less than 200 us.
The LP3985 is available with fixed output voltagesfrom 2.5 V to 5 V. Contact Texas Instruments Salesfor specific voltage option needs.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| SOT-23-5 | |
| 2.5 V | |
| 150 mA | |
| 1 Output | |
| Positive | |
| 250 uA | |
| 2.5 V | |
| 6 V | |
| 50 dB | |
| Fixed | |
| - 40 C | |
| + 125 C | |
| 60 mV | |
| LP3985 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Dropout Voltage - Max: | 0.002 V at 1 mA, 0.035 V at 50 mA, 0.07 V at 100 mA, 0.1 V at 150 mA |
| Ib - Input Bias Current: | 155 uA |
| Line Regulation: | 0.1 % |
| Load Regulation: | 0.0025 % |
| Operating Supply Current: | 85 uA |
| Operating Temperature Range: | - 4 |
| Pd - Power Dissipation: | 250 mW |
| Product: | Micropower CMOS LDO Regulators |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 1000 |
| Subcategory: | PMIC - Power Management ICs |
| Tolerance: | 3 % |
| Type: | Low dropout low quiescent current Regulator |
| Voltage Regulation Accuracy: | 2 % |
| Unit Weight: | 0.000222 oz |
