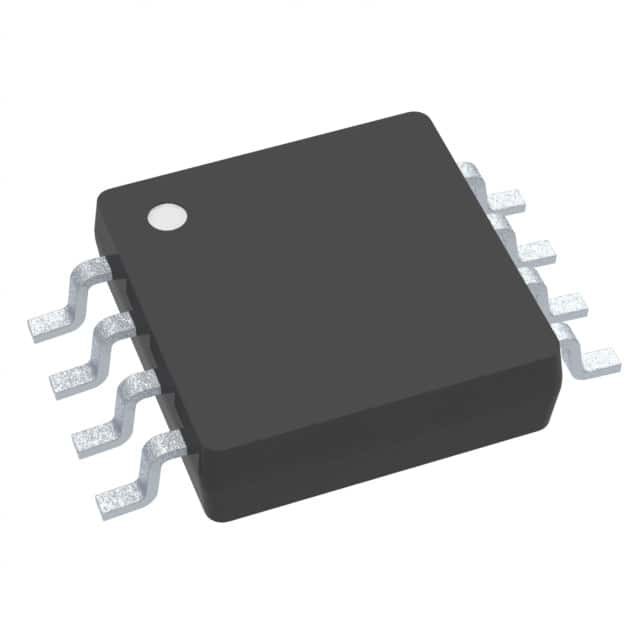

THS4521IDGKR / VSSOP-8 / Amplifier ICs
The THS4521,THS4522,and THS4524 family ofdevices are very low-power, fullydifferentialamplifiers with rail-to-rail output and an inputcommon-mode range that includes the negative rail.These amplifiers are designed for low-power dataacquisition systems and high-density applicationswhere power dissipation is a critical parameter, andprovideexceptionalperformanceinaudioapplications
The family includes single FDA (THS4521), dual FDA(THS4522),and quad FDA (THS4524) versions.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Differential Amplifiers |
| THS4521 | |
| 1 Channel | |
| 95 MHz | |
| 490 V/us | |
| 102 dB | |
| 55 mA | |
| 0.9 uA | |
| 2 mV | |
| 5.5 V | |
| 2.5 V | |
| 1.14 mA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| VSSOP-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | THS4521EVM |
| Features: | Shutdown |
| Gain V/V: | 0.99 V/V |
| Height: | 0.97 mm |
| Input Type: | Rail-to-Rail |
| Length: | 3 mm |
| Maximum Dual Supply Voltage: | +/- 2.75 V |
| Minimum Dual Supply Voltage: | +/- 1.5 V |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 5 V |
| Output Type: | Rail-to-Rail |
| Product: | Differential Amplifiers |
| Product Type: | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 80 dB |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Voltage Gain dB: | 119 dB |
| Width: | 3 mm |
| Unit Weight: | 0.000935 oz |
