INA2132U / Differential Amplifiers Dual Low Power Single-Supply
FEATURES
● DESIGNED FOR LOW COST
● LOW QUIESCENT CURRENT: 160µA per Amplifier
● WIDE POWER SUPPLY RANGE: Single Supply: 2.7V to 36V Dual Supplies: ±1.35V to ±18V
● LOW GAIN ERROR: ±0.05% max
● LOW NONLINEARITY: 0.001% max
● HIGH CMRR: 90dB
● HIGHLY VERSATILE CIRCUIT
● EASY TO USE

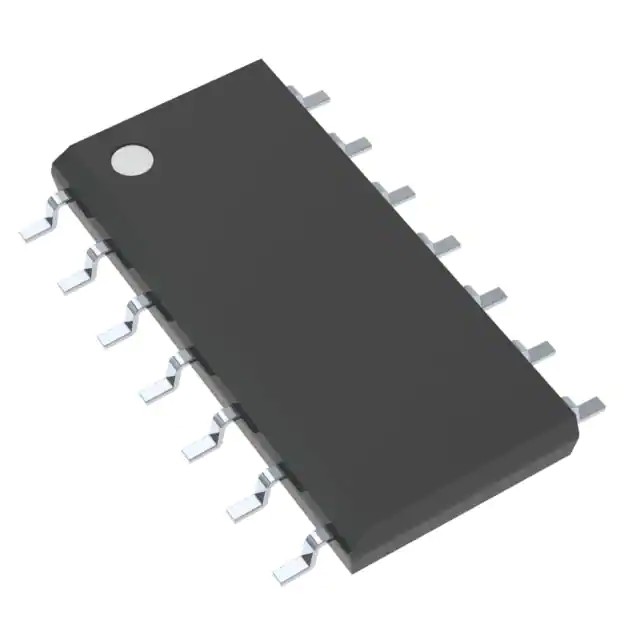

● SO-14 PACKAGE
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Differential Amplifiers |
| RoHS: | Details |
| INA2132 | |
| 2 Channel | |
| 300 kHz | |
| 0.1 V/us | |
| 80 dB | |
| 12 mA | |
| 75 uV | |
| 36 V | |
| 2.7 V | |
| 160 uA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| SOIC-14 | |
| Tube | |
| 3 dB Bandwidth: | 300 kHz |
| Amplifier Type: | Differential |
| Brand: | Texas Instruments |
| Gain Error: | 0.075 % |
| Gain V/V: | 1 V/V |
| Input Voltage Range - Max: | 18 V |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 2.7 V to 36 V |
| Product: | Differential Amplifiers |
| Product Type: | Differential Amplifiers |
| Settling Time: | 85 us |
| Factory Pack Quantity: | 50 |
| Subcategory: | Amplifier ICs |
| Vcm - Common Mode Voltage: | - 15 V |
| Unit Weight: | 0.004564 oz |
