OPA377AIDCKT / Operational Amplifiers - Op Amps Lo-Cost,Lo Noise 5.5MHz CMOS Op Amp
DESCRIPTION
The oPA377 family of operational amplifiers are wide bandwidth cmos ampliners that provide ver low noise. low nout blas current. and low offset
vollage while operating on a low quiescent current of 0.76mA (typ).
The OPA377 op amps are optimized for low-vollage,single-supplyapplications.The exceptiona combination of ac and dc periormance make them
ideal for a wide range of applications, including small signal conditoning, audio, and active filters. in addition, these parts have a wide supply range with excellent PSRR. making them attraclive for applications that run directly from batteries without regulation.

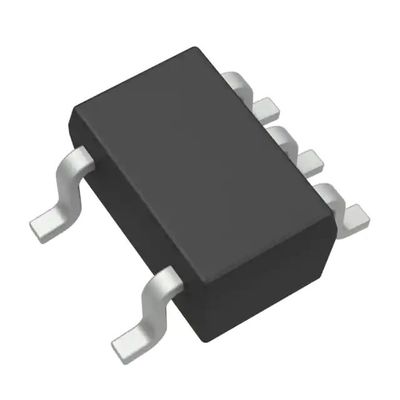

The OPA377 is available in the SC70-5.SOT23-5 and so-8 packages. The dual OPA2377 is offered in the so 8 and Msop-8.and the quad OPA4377in the Tssop-14 packages, All versions are specied tor operation from-40°C to +125'C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | Details |
| SMD/SMT | |
| SC-70-5 | |
| 1 Channel | |
| 5.5 V | |
| 5.5 MHz | |
| 30 mA | |
| 5 V/us | |
| 1 mV | |
| 2.2 V | |
| - 40 C | |
| + 125 C | |
| 10 pA | |
| 760 uA | |
| No Shutdown | |
| 90 dB | |
| 7.5 nV/sqrt Hz | |
|
OPA377 |
|
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Features: | Small Size, EMI Hardened |
| Input Type: | Rail-to-Rail |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 2.25 V to 5.5 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| Factory Pack Quantity: | 250 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single |
| Unit Weight: | 0.000705 oz |
