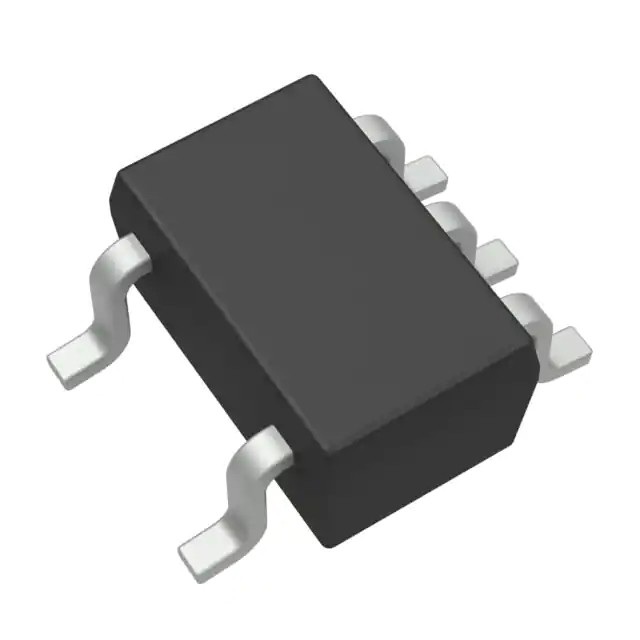

LMC7101AIM5X/NOPB / Operational Amplifiers - Op Amps TINY LOW POWER OP AMP W/ RRIO
• Tiny 5-Pin SOT-23 Package Saves
Space-Typical Circuit Layouts Take Half the
Space of 8-Pin SOlC Designs
• Ensured Speciications at 2.7-V,3-V.5-V.15-V
Supplies
• Typical Supply Current 0.5 mA at 5 V
• Typical Total Harmonic Distortion of 0.01% at 5 V
• 1-MHz Gain Bandwidth
• Similar to Popular LMC6482 and LMC6484
• Rail-to-Rail Input and Output
• Temperature Range-40°C to 125°C
(LMC7101Q-Q1)
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: |
Details |
| SMD/SMT | |
| SOT-23-5 | |
| 1 Channel | |
| 15.5 V | |
| 1.1 MHz | |
| 24 mA | |
| 1.1 V/us | |
| 6 mV | |
| 2.7 V | |
| - 40 C | |
| + 85 C | |
| 64 pA | |
| 500 uA | |
| No Shutdown | |
| 70 dB | |
| 37 nV/sqrt Hz | |
| LMC7101 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Low Power Amplifier |
| Brand: | Texas Instruments |
| Height: | 1.02 mm |
| In - Input Noise Current Density: | 0.0015 pA/sqrt Hz |
| Input Type: | Rail-to-Rail |
| Length: | 2.92 mm |
| Operating Supply Voltage: | 3 V, 5 V, 15 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 70 dB |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single |
| Technology: | CMOS |
| Vcm - Common Mode Voltage: | 2.7 V to 15.5 V |
| Voltage Gain dB: | 110.63 dB |
| Width: | 1.6 mm |
| Unit Weight: |
0.000222 oz |
