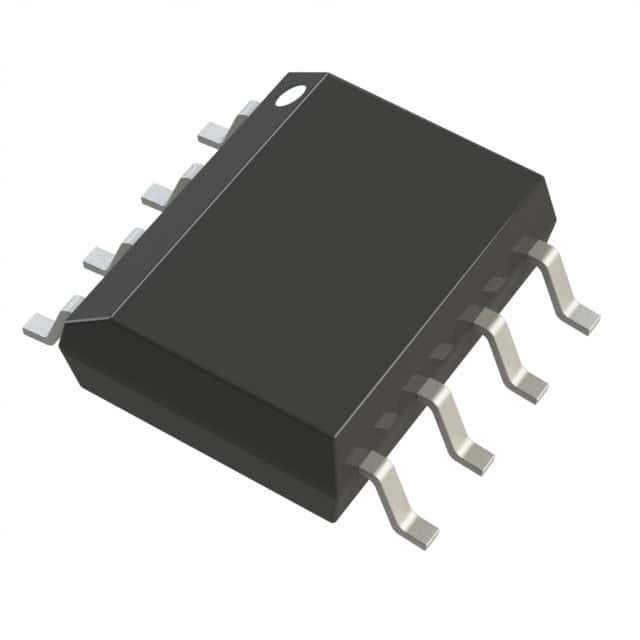

AD8276ARZ-R7 / SOIC-8 / Amplifier ICs
Description
The AD8276/AD8277 are general-purpose, unity-gain difference amplifiers intended for precision signal conditioning in power critical applications that require both high performance and low power. They provide exceptional 86 dB common-mode rejection ratio (CMRR) and high bandwidth while amplifying signals well beyond the supply rails. The on-chip resistors are laser trimmed for gain drift of 1 ppm/°C and high CMRR. The AD8276/AD8277 also have extremely low gain drift vs. temperature.
The common-mode range of the amplifiers extends to almost double the supply voltage, making these amplifiers ideal for single-supply applications that require a high common-mode voltage range. The internal resistors and electrostatic discharge (ESD) circuitry at the inputs also provide overvoltage protection to the op amps.
The AD8276/AD8277 are unity-gain stable. Although they are optimized for use as difference amplifiers, they can also be connected in high precision, single-ended configurations with G = −1, +1, or +2. The AD8276/AD8277 provide an integrated precision solution that has smaller size, lower cost, and improved performance than a discrete alternative.
The AD8276/AD8277 operate on single supplies (2.0 V to 36 V) or dual supplies (±2 V to ±18 V). The maximum quiescent supply current is 200 μA per channel, which is ideal for batteryoperated and portable systems.
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Differential Amplifiers |
| AD8276 | |
| 1 Channel | |
| 550 kHz | |
| 1.1 V/us | |
| 86 dB | |
| 15 mA | |
| 100 uV | |
| 36 V | |
| 2 V | |
| 200 uA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| SOIC-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Analog Devices |
| Dual Supply Voltage: | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Height: | 1.5 mm (Max) |
| Length: | 5 mm (Max) |
| Maximum Dual Supply Voltage: | +/- 18 V |
| Maximum Input Resistance: | 80 kOhms |
| Minimum Dual Supply Voltage: | +/- 2 V |
| Operating Supply Voltage: | 2 V to 36 V |
| Product: | Differential Amplifiers |
| Product Type: | Differential Amplifiers |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Width: | 4 mm (Max) |
| Unit Weight: | 0.019048 oz |
