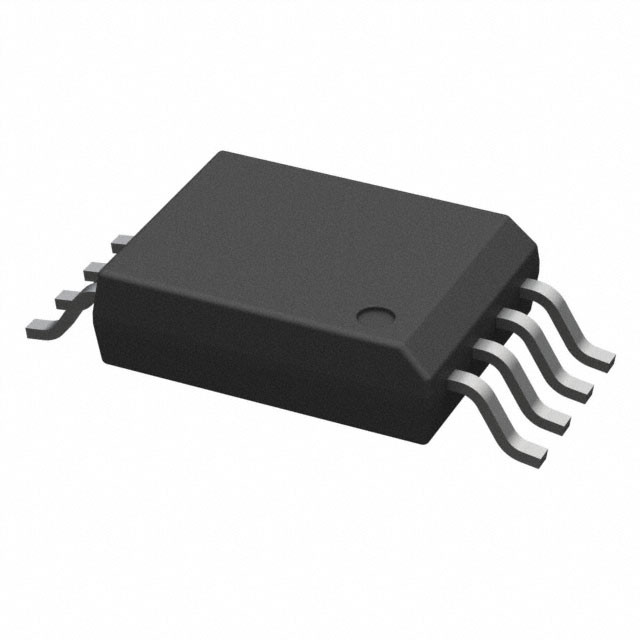

AMC1301DWVR / SOIC-8 / Amplifier ICs
Description
The AMC1301 is a precision, isolated amplifier with an output separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 7 kVPEAK according to VDE V 0884-11 and UL1577. Used in conjunction with isolated power supplies, this device prevents noise currents on a high common-mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry.
The input of the AMC1301 is optimized for direct connection to shunt resistors or other low voltagelevel signal sources. The excellent performance of the device supports accurate current control resulting in system-level power savings and, especially in motor control applications, lower torque ripple. The integrated common-mode overvoltage and missing high-side supply voltage detection features of the AMC1301 simplify system-level design and diagnostics.
The AMC1301 is fully specified over the extended industrial temperature range of –40°C to +125°C and is available in a wide-body 8-pin SOIC (DWV) package. The AMC1301S is specified over the temperature range of –55°C to +125°C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Isolation Amplifiers |
| AMC1301 | |
| 1 Channel | |
| 5 kVrms | |
| Galvanic | |
| 210 kHz | |
| 93 dB | |
| - 60 uA | |
| 50 uV | |
| 5.5 V | |
| 3 V | |
| 5 mA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SOIC-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Precision Isolated Amplifier |
| Brand: | Texas Instruments |
| Gain Error: | 0.03 % |
| Gain V/V: | 8.2 V/V |
| Moisture Sensitive: | Yes |
| Output Current per Channel: | 13 mA |
| Output Type: | Differential |
| Pd - Power Dissipation: | 81.4 mW |
| Product: | Isolation Amplifiers |
| Product Type: | Isolation Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 90 dB |
| Shutdown: | No Shutdown |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Amplifier ICs |
| Unit Weight: | 0.014610 oz |
