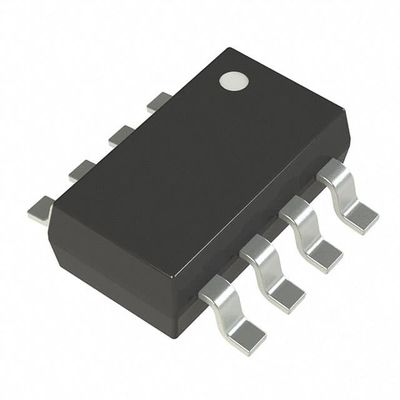

TLV3502AIDCNT / SOT-23-8 / Amplifier ICs
Description
The TLV350x family of push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input commonmode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic.
Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in 6-pin SOT-23 and 8-pin SO packages. The dual (TLV3502) comes in the 8-pin SOT-23 and 8-pin SO packages.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Analog Comparators |
| SMD/SMT | |
| SOT-23-8 | |
| 2 Channel | |
| Rail-to-Rail | |
| 4.5 ns | |
| General Purpose | |
| 2.2 V | |
| 5.5 V | |
| 5 mA | |
| 6.5 mV | |
| 10 pA | |
| - 40 C | |
| + 125 C | |
| TLV3502 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| CMRR - Common Mode Rejection Ratio: | 55 dB |
| Features: | Hysteresis, Small Size |
| GBP - Gain Bandwidth Product: | - |
| Height: | 1.1 mm |
| Input Type: | Rail-to-Rail |
| Ios - Input Offset Current: | 10 pA |
| Length: | 2.9 mm |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 2.2 V to 5.5 V |
| Product: | Analog Comparators |
| Product Type: | Analog Comparators |
| PSRR - Power Supply Rejection Ratio: | 100 dB |
| Reference Voltage: | No |
| Shutdown: | No Shutdown |
| Factory Pack Quantity: | 250 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single |
| Technology: | CMOS |
| Type: | High Speed Comparator |
| Vcm - Common Mode Voltage: | - 0.2 V |
| Width: | 1.63 mm |
| Unit Weight: | 0.001411 oz |
