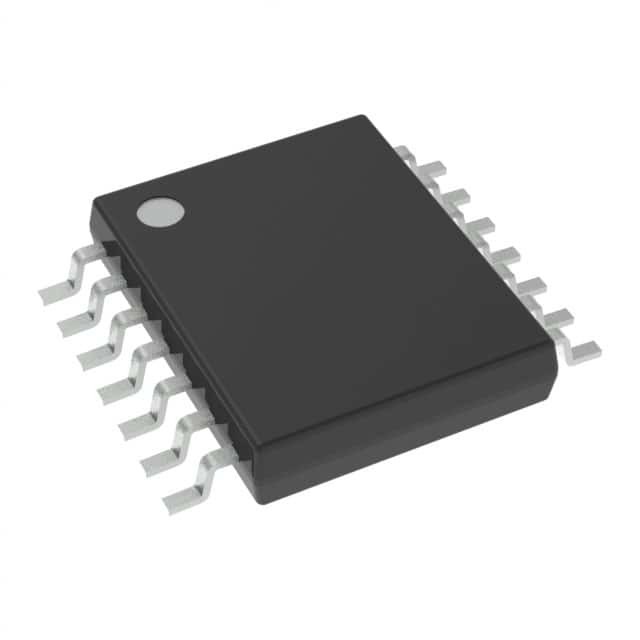

OPA4171AIPWR / TSSOP-14 / Amplifier ICs
Description
The OPA171, OPA2171, and OPA4171 (OPAx171) are a family of 36-V, single-supply, low-noise operational amplifiers with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). These devices are available in micro-packages and offer low offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility.
Unlike most operational amplifiers, which are specified at only one supply voltage, the OPAx171 family is specified from 2.7 to 36 V. Input signals beyond the supply rails do not cause phase reversal. The OPAx171 family is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. These devices can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.
The OPAx171 series of operational amplifiers are specified from –40°C to +125°C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| SMD/SMT | |
| TSSOP-14 | |
| 4 Channel | |
| 36 V | |
| 3 MHz | |
| 25 mA | |
| 1.5 V/us | |
| 1.8 mV | |
| 2.7 V | |
| - 40 C | |
| + 125 C | |
| 15 pA | |
| 475 uA | |
| No Shutdown | |
| 120 dB | |
| 14 nV/sqrt Hz | |
| OPA4171 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Low Power Amplifier |
| Brand: | Texas Instruments |
| Features: | EMI Hardened |
| Input Type: | Rail-to-Rail |
| Minimum Dual Supply Voltage: | +/- 1.35 V |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 2.7 V to 36 V, +/- 1.35 V to +/- 18 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| Factory Pack Quantity: | 2000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Unit Weight: | 0.002018 oz |
