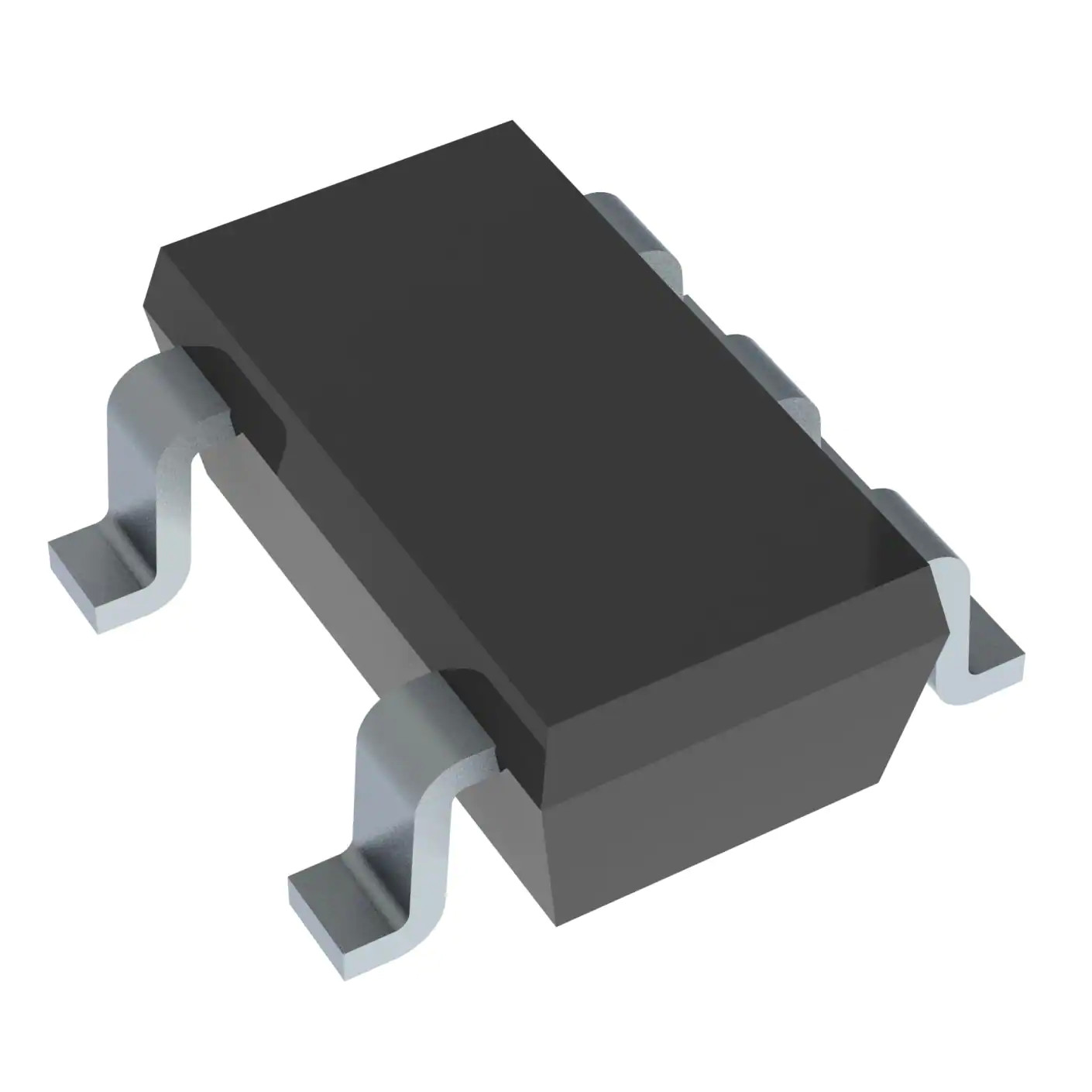

TLV2371QDBVRQ1 / Operational Amplifiers - Op Amps Auto Cat 550uA/Ch 3MHz Rail to Rail
The TLV237x-Q1 devices aresingle-supply
operational amplifiers providing rail-to-rail input and output capability. The TLV237x-Q1 takes the minimum operating supply voltage down to 2.7 Vand up to 16 V over the extended automotive temperature range. Therefore, the wide voltage range can support both start-stop functionality and a connection directh to the tvpical 12-V batterv. The rail-to-rail capabilties allow the device to maximize the output signal and avoid clipping.
The cmos inputs enable high-impedance suitable for engine control units (Ecul, body control modules BCM), battery management systems(BMS),and HEV/EV inverters. This also allows the user to draw a lower offset voltage and maintain low power consumption to help meet overall system needs for quiescent current such as in infotainment or cluster HEVIEV, and powertrain.
Additionally, the TLV237x-Q1 family supports a high common-mode rail to the supply voltage. This feature sets no gain limitations and can support the input at any level without the concern for any phase reversal.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | Details |
| SMD/SMT | |
| SOT-23-5 | |
| 1 Channel | |
| 16 V | |
| 3 MHz | |
| 7 mA | |
| 2.4 V/us | |
| 4.5 mV | |
| 2.7 V | |
| - 40 C | |
| + 125 C | |
| 60 pA | |
| 550 uA | |
| No Shutdown | |
| 84 dB | |
| 39 nV/sqrt Hz | |
| TLV2371-Q1 | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Low Power Amplifier |
| Brand: | Texas Instruments |
| Dual Supply Voltage: | +/- 3 V, +/- 5 V |
| Height: | 1.15 mm |
| In - Input Noise Current Density: | 0.0006 pA/sqrt Hz |
| Input Type: | Rail-to-Rail |
| Length: | 2.9 mm |
| Maximum Dual Supply Voltage: | +/- 8 V |
| Minimum Dual Supply Voltage: | +/- 1.35 V |
| Operating Supply Voltage: | 2.7 V to 16 V, +/- 1.35 V to +/- 8 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 70 dB |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Technology: | CMOS |
| Voltage Gain dB: | 110 dB |
| Width: | 1.6 mm |
| Unit Weight: | 0.000222 oz |
