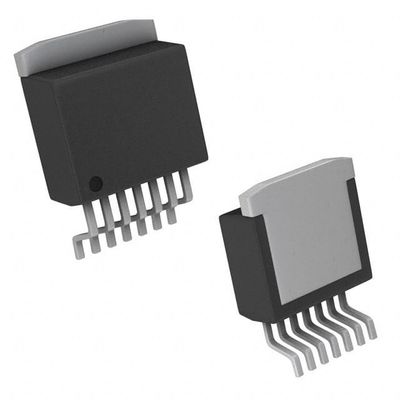

TPS74401KTWR / TO-263-7 / LDO Voltage Regulators
The TPS74401 low-dropout (LDO) linear regulators provide an easy-to-use robust power-management solution for a wide variety of applications. The userprogrammable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and wellsuited for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility lets the user configure a solution that meets the sequencing requirements of fieldprogrammable gate arrays (FPGAs), digital signal processors (DSPs), and other applications with specific start-up requirements.
A precision reference and error amplifier deliver 1% accuracy over load, line, temperature, and process. The TPS74401 family of LDOs is stable without an output capacitor or with ceramic output capacitors. The device family is fully specified from TJ = –40°C to 125°C. The TPS74401 is offered in two 20-pin small VQFN packages (a 5-mm × 5-mm RGW and a 3.5-mm × 3.5-mm RGR package), yielding a highly compact total solution size. For applications that require additional power dissipation, the DDPAK (KTW) package is also available.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| TO-263-7 | |
| 3 A | |
| 1 Output | |
| Positive | |
| 800 mV | |
| 5.5 V | |
| Adjustable | |
| - 40 C | |
| + 125 C | |
| 115 mV | |
| TPS74401 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS74401EVM-118 |
| Dropout Voltage - Max: | 240 mV |
| Height: | 4.44 mm |
| Ib - Input Bias Current: | 2 mA |
| Length: | 10.1 mm |
| Line Regulation: | 0.0005 %/V |
| Load Regulation: | 0.03 %/A |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 3 mA |
| Operating Temperature Range: | - 4 |
| Output Voltage Range: | 800 mV to 3.6 V |
| Pd - Power Dissipation: | 5.32 W |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Reference Voltage: | 0.804 V |
| Factory Pack Quantity: | 500 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Ultra LDO Regulators |
| Voltage Regulation Accuracy: | 1 % |
| Width: | 8.89 mm |
| Unit Weight: | 0.056438 oz |
