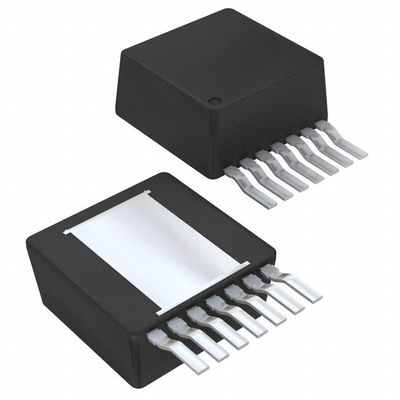

LMZ23605TZX/NOPB / TO-PMOD-7 / Switching Voltage Regulators
The LMZ23605 SIMPLE SWITCHERpower moduleis an easy-to-use step-down DC - DC solutioncapable of driving up to 5-A load. The LMZ23605 isavailable in an innovative package that enhancesthermal performance and allows for hand or machinesoldering.
The LMZ23605 can accept an input voltage railbetween 6 V and 36 V and can deliver an adjustableand highly accurate output voltage as low as 0.8 V.The LMZ23605 only requires two external resistorsand three external capacitors to complete the powersolution. The LMZ23605 is a reliable and robustdesign with the following protection features: thermashutdown, programmable input undervoltage lockout.output overvoltage protection, short circuit protection,output current limit, and the device allows start-upinto a prebiased output. The sync input allowssynchronization over the 650- to 950-kHz switchingfrequency range.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| TO-PMOD-7 | |
| Buck | |
| 800 mV to 6 V | |
| 5 A | |
| 1 Output | |
| 6 V | |
| 36 V | |
| 650 kHz to 950 kHz | |
| - 40 C | |
| + 85 C | |
| LMZ23605 | |
| Reel | |
| Brand: | Texas Instruments |
| Load Regulation: | 1 mV / A |
| Moisture Sensitive: | Yes |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 500 |
| Subcategory: | PMIC - Power Management ICs |
| Tradename: | SIMPLE SWITCHER |
| Type: | Voltage Converter |
