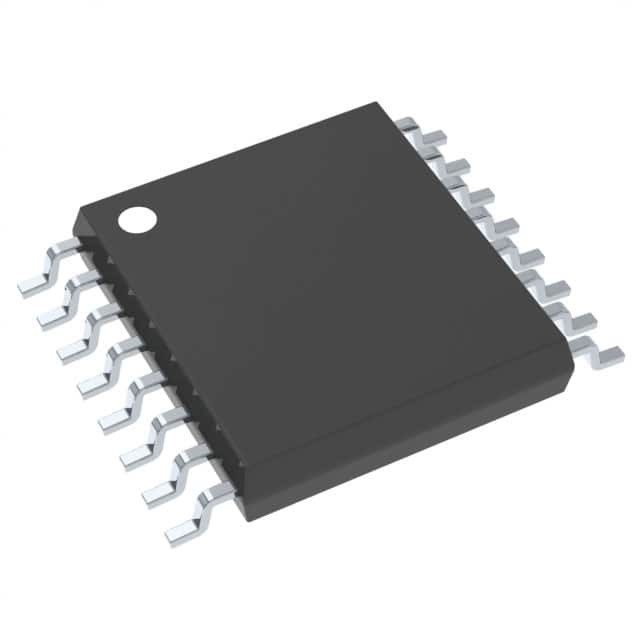

TPL7407LPWR / TSSOP-16 / Gate Drivers
The TPL7407L is a high-voltage, high-current NMOS transistor array. This device consists of seven NMOS transistors that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The maximum drain-current rating of a single NMOS channel is 600 mA. New regulation and drive circuitry added to give maximum drive strength across all GPIO ranges (1.8 V – 5.0 V).The transistors can be paralleled for higher current capability.
The TPL7407L's key benefit is its improved power efficiency and lower leakage than a Bipolar Darlington Implementation. With the lower VOL the user is dissipating less than half the power than traditional relay drivers with currents less than 250 mA per channel.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Gate Drivers |
| Relay Drivers | |
| Low-Side | |
| SMD/SMT | |
| TSSOP-16 | |
| 7 Driver | |
| 7 Output | |
| 600 mA | |
| 0 V | |
| 40 V | |
| - 40 C | |
| + 125 C | |
| TPL7407L | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Logic Type: | CMOS, TTL |
| Maximum Turn-Off Delay Time: | 350 ns |
| Maximum Turn-On Delay Time: | 350 ns |
| Operating Supply Voltage: | 0 V to 40 V |
| Output Voltage: | 40 V |
| Product Type: | Gate Drivers |
| Factory Pack Quantity: | 2000 |
| Subcategory: | PMIC - Power Management ICs |
| Technology: | Si |
| Unit Weight: | 0.006102 oz |
