LM2936QMPX-5.0/NOPB / LDO Voltage Regulators Ultra-Lo Quiescent Current LDO Vtg Reg
Description
The LM2936Q ultralow quiescent-current regulator features low dropout voltage and low current in the standby mode. With less than 15-μA quiescent current at a 100-μA load, the LM2936Q is ideally suited for automotive and other battery-operated systems. The LM2936Q retains all of the features that are common to low-dropout regulators including a low dropout PNP pass device, short-circuit protection, reverse battery protection, and thermal shutdown. The LM2936Q has a 40-V maximum operating voltage limit, a −40°C to +125°C operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936Q is available in 8-pin SOIC and VSSOP packages, a 4-pin SOT–223 package, as well as a 3-pin TO-252 surface mount package.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |

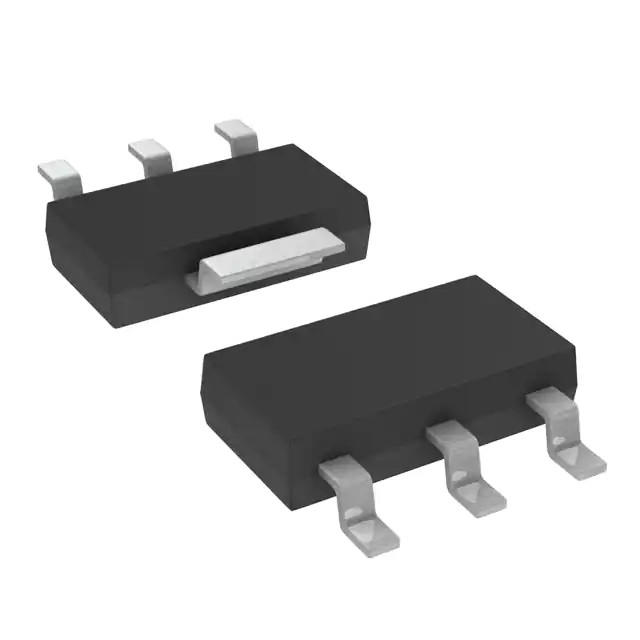

| SOT-223-4 | |
| 5 V | |
| 50 mA | |
| 1 Output | |
| Positive | |
| 15 uA | |
| 5.5 V | |
| 40 V | |
| Fixed | |
| - 40 C | |
| + 125 C | |
| 200 mV | |
| AEC-Q100 | |
| LM2936Q-Q1 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Operating Supply Current: | 15 uA |
| Operating Temperature Range: | - 4 |
| Product Type: | LDO Voltage Regulators |
|
Factory Pack Quantity: |
2000 |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.003951 oz |
