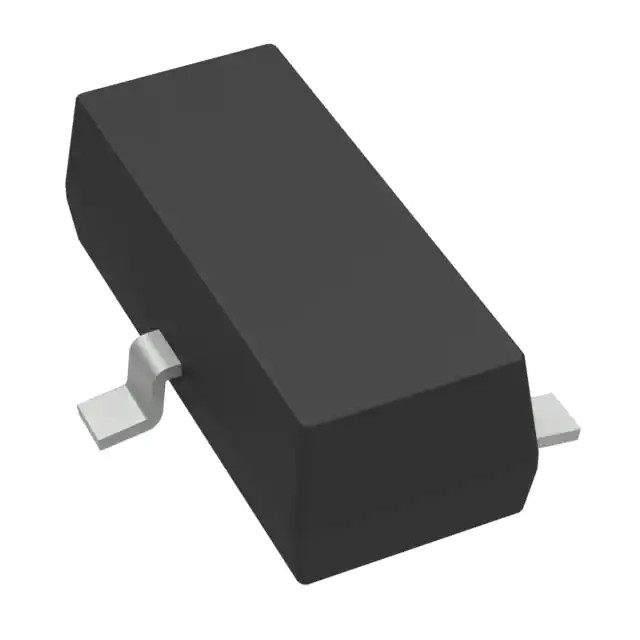

LM86CIMX/NOPB / Board Mount Temperature Sensors +/-0.75 C remote and local temperature sensor
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Voltage References |
| RoHS: | Details |
| SMD/SMT | |
| SOT-23-3 | |
| Series References | |
| 2.5 V | |
| 0.15 % | |
| 30 PPM / C | |
| 5.5 V | |
| 5 mA | |
| - 40 C | |
| + 125 C | |
| REF3325 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Accuracy: | 50 PPM/mA |
| Brand: | Texas Instruments |
| Height: | 1 mm |
| Length: | 2.92 mm |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 3.9 uA |
| Product: | Voltage References |
| Product Type: | Voltage References |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | PMIC - Power Management ICs |
| Topology: | Series References |
| Width: | 1.3 mm |
| Unit Weight: | 0.000282 oz |
APPLICATIONS
• Portable Equipment
• Tablets and Smartphones
• Hard Disk Drives
• Sensor Modules
• Data Acquisition Systems
• Medical Equipment
• Test Equipment
Description
The REF33xx is a low-power, precision, low-dropout voltage reference family available in tiny SC70-3 and SOT-23-3 packages, and in a 1.5-mm × 1.5-mm UQFN-8 package. Small size and low power consumption (5-μA max) make the REF33xx ideal for a wide variety of portable and battery-powered applications.
The REF33xx can be operated at a supply voltage 180 mV above the specified output voltage under normal load conditions, with the exception of the REF3312, which has a minimum supply voltage of 1.7 V. All models are specified for the wide temperature range of –40°C to +125°C.
