Name: OPA376AIDBVR Integrated Circuit ICs 1 Channel Precision Operational Amplifier
Brand: HAOXIN HK ELECTRONIC TECHNOLOGY CO. LIMITED
SKU: OPA376AIDBVR
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Category:: Sensor Interface

Supply Voltage - Max:: 22 V

Supply Voltage - Min:: 5 V

Operating Supply Current:: 1.8 MA

Number Of Drivers:: 1 Driver

Packaging:: REEL

Highlight:

OPA376AIDBVR Integrated Circuit ICs

OPA376AIDBVR Precision Operational Amplifier

1 Channel Precision Operational Amplifier

Basic Infomation

Place of Origin: Philippines

Brand Name: Texas Instruments

Model Number: OPA376AIDBVR

Payment & Shipping Terms

Packaging Details: REEL

Delivery Time: in stock

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: contact us

Gallery

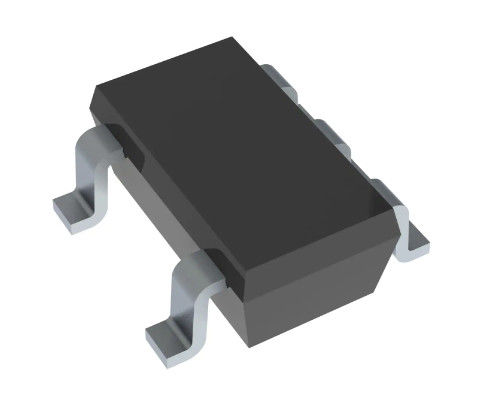

OPA376AIDBVR Integrated Circuit ICs 1 Channel Precision Operational Amplifier

Product Description

OPA376AIDBVR / SMD/SMT / Texas Instruments / 1 Channel / REEL

The OPAx376 family of precision amplifiers offers excellent dc performance as well as excellent ac performance. Operating from a single power-supply the OPAx376 is capable of driving large capacitive loads, has a wide input common-mode voltage range, and is well-suited to drive the inputs of SAR ADCs as well as 24-bit and higher resolution converters. Including internal ESD protection, the OPAx376 family is offered in a variety of industrystandard packages, including a wafer chip-scale package for applications that require space savings.

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	Precision Amplifiers
RoHS:	Details
Series:	OPA376
Number of Channels:	1 Channel
GBP - Gain Bandwidth Product:	5.5 MHz
SR - Slew Rate:	2 V/us
CMRR - Common Mode Rejection Ratio:	90 dB
Output Current per Channel:	50 mA
Ib - Input Bias Current:	0.2 pA
Vos - Input Offset Voltage:	5 uV
en - Input Voltage Noise Density:	7.5 nV/sqrt Hz
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	2.2 V
Operating Supply Current:	760 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Shutdown:	No Shutdown
Mounting Style:	SMD/SMT
Package / Case:	SOT-23-5
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Amplifier Type:	Low Noise Amplifier
Brand:	Texas Instruments
Features:	Small Size, EMI Hardened
Height:	1.15 mm
In - Input Noise Current Density:	0.002 pA/sqrt Hz
Input Type:	Rail-to-Rail
Length:	2.9 mm
Moisture Sensitive:	Yes
Operating Supply Voltage:	2.2 V to 5.5 V
Output Type:	Rail-to-Rail
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	106.02 dB
Factory Pack Quantity:	3000
Subcategory:	Amplifier ICs
Supply Type:	Single
Technology:	CMOS
Voltage Gain dB:	134 dB
Width:	1.6 mm
Unit Weight:	0.001658 oz
