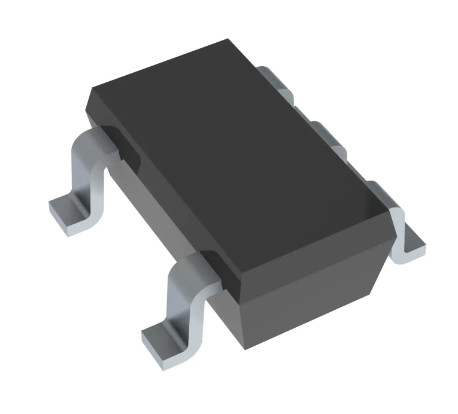

TPS60400DBVR / SMD/SMT / Texas Instruments / SOT-23-5 / REEL
The TPS6040x family of devices generates an unregulated negative output voltage from an input voltage ranging from 1.6 V to 5.5 V. The devices are typically supplied by a preregulated supply rail of 5 V or 3.3 V. Due to its wide input voltage range, two or three NiCd, NiMH, or alkaline battery cells, as well as one Li-Ion cell can also power them. Only three external 1-µF capacitors are required to build a complete DC-DC charge pump inverter. Assembled in a 5-pin SOT-23 package, the complete converter can be built on a 50-mm2 board area. Additional board area and component count reduction is achieved by replacing the Schottky diode that is typically needed for start-up into load by integrated circuitry. The TPS6040x can deliver a maximum output current of 60 mA with a typical conversion efficiency of greater than 90% over a wide output current range. Three device options with 20-kHz, 50-kHz, and 250- kHz fixed-frequency operation are available. TPS60400 comes with a variable switching frequency to reduce operating current in applications with a wide load range and enables the design with low-value capacitors.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SOT-23-5 | |
| Boost, Buck, Inverting | |
| - 1.6 V to - 5.25 V | |
| 60 mA | |
| 1 Output | |
| 1.6 V | |
| 5.5 V | |
| 100 uA | |
| 50 kHz to 250 kHz | |
| - 40 C | |
| + 85 C | |
| TPS60400 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Inverting, Step Up, Step Down |
| Height: | 1.15 mm |
| Input Voltage: | 1.6 V to 5.5 V |
| Length: | 2.9 mm |
| Operating Supply Current: | 125 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Charge Pump (Inductorless) |
| Width: | 1.6 mm |
| Unit Weight: | 0.001376 oz |
