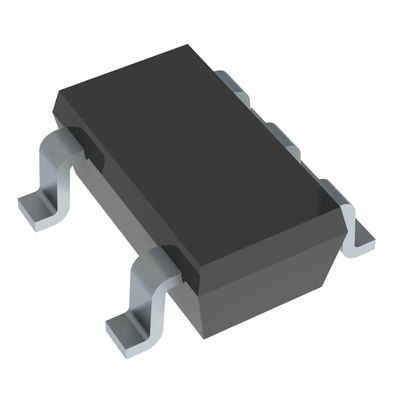

TPS60401DBVR / Switching Voltage Regulators 60mA Charge Pump Voltage Inverter
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SOT-23-5 | |
| Boost, Buck, Inverting | |
| - 1.6 V to - 5.25 V | |
| 60 mA | |
| 1 Output | |
| 1.6 V | |
| 5.5 V | |
| 1 mA | |
| 20 kHz | |
| - 40 C | |
| + 85 C | |
| TPS60401 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Inverting, Step Up, Step Down |
| Height: | 1.15 mm |
| Input Voltage: | 1.6 V to 5.5 V |
| Length: | 2.9 mm |
| Operating Supply Current: | 70 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Charge Pump (Inductorless) |
| Width: | 1.6 mm |
| Unit Weight: | 0.001376 oz |
FEATURES
• Inverts Input Supply Voltage
• Up to 60-mA Output Current
• Only Three Small 1-µF Ceramic Capacitors Needed
• Input Voltage Range From 1.6 V to 5.5 V
• PowerSave-Mode for Improved Efficiency at LowOutput Currents (TPS60400)
• Device Quiescent Current Typical 65 µA
• Integrated Active Schottky-Diode for Start-up Into Load
• Small 5-Pin SOT-23 Package
• Evaluation Module Available TPS60400EVM-178
