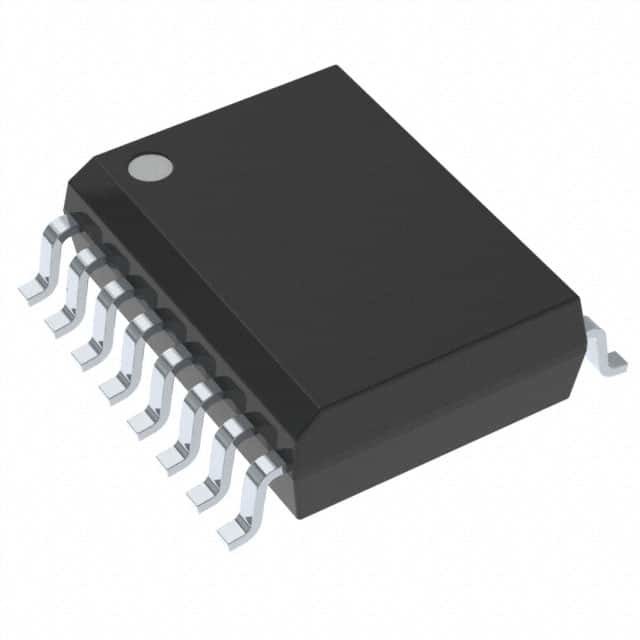

ISO7241MDWR / SOIC-16 / Digital Isolators
The ISO7240x, ISO7241x, and ISO7242x devices are quad-channel digital isolators with multiple channel configurations and output-enable functions. These devices have logic-input and logic-output buffers separated by Texas Instrument’s silicon-dioxide (SiO2 ) isolation barrier. Used in conjunction with isolated power supplies, these devices help block high voltage, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry.
The ISO7240x family of devices has all four channels in the same direction. The ISO7241x family of devices has three channels in the same direction and one channel in the opposition direction. The ISO7242x family of devices has two channels in each direction.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Digital Isolators |
| ISO7241M | |
| SMD/SMT | |
| SOIC-16 | |
| 4 Channel | |
| Unidirectional | |
| 150 Mb/s | |
| 2500 Vrms | |
| Capacitive Coupling | |
| 5.5 V | |
| 3.15 V | |
| 12 mA, 18 mA | |
| 29 ns | |
| - 40 C | |
| + 125 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Forward Channels: | 3 Channel |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 3.3 V to 5 V |
| Product Type: | Digital Isolators |
| Reverse Channels: | 1 Channel |
| Factory Pack Quantity: | 2000 |
| Subcategory: | Interface ICs |
| Unit Weight: | 0.014829 oz |
