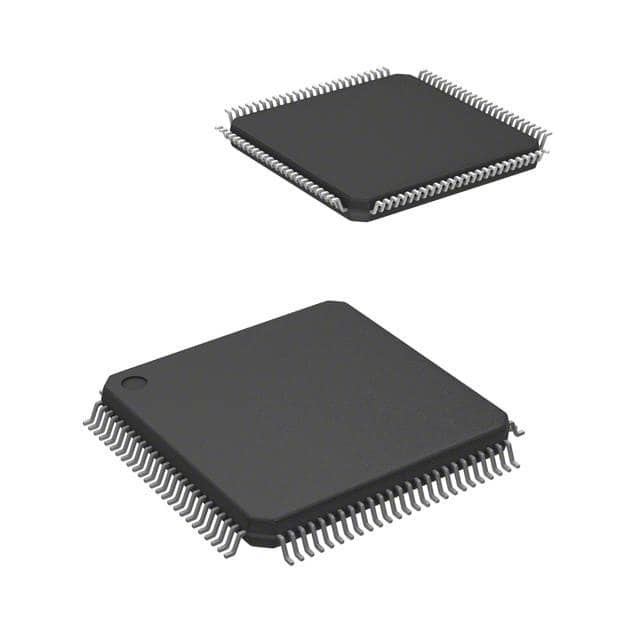

TM4C123GH6PZI7 / LQFP-100 / ARM Microcontrollers - MCU
Texas Instrument's Tiva™ C Series microcontrollers provide designers a high-performance ARM® Cortex™-M-based architecture with a broad set of integration capabilities and a strong ecosystem of software and development tools. Targeting performance and flexibility, the Tiva™ C Series architecture offers a 80 MHz Cortex-M with FPU, a variety of integrated memories and multiple programmable GPIO. Tiva™ C Series devices offer consumers compelling cost-effective solutions by integrating application-specific peripherals and providing a comprehensive library of software tools which minimize board costs and design-cycle time. Offering quicker time-to-market and cost savings, the Tiva™ C Series microcontrollers are the leading choice in high-performance 32-bit applications.
This chapter contains an overview of the Tiva™ C Series microcontrollers as well as details on the TM4C123GH6PZ microcontroller:
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | ARM Microcontrollers - MCU |
| TM4C123GH6PZ | |
| SMD/SMT | |
| LQFP-100 | |
| ARM Cortex M4F | |
| 256 kB | |
| 32 bit | |
| 12 bit | |
| 80 MHz | |
| 69 I/O | |
| 32 kB | |
| 3.15 V | |
| 3.63 V | |
| - 40 C | |
| + 105 C | |
| Analog Supply Voltage: | 3.3 V |
| Brand: | Texas Instruments |
| Data RAM Type: | SRAM |
| Data ROM Size: | 2 kB |
| Data ROM Type: | EEPROM |
| Interface Type: | CAN, I2C, SSI, UART, USB |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 22 Channel |
| Processor Series: | Tiva C |
| Product: | MCU |
| Product Type: | ARM Microcontrollers - MCU |
| Program Memory Type: | Flash |
| Factory Pack Quantity: | 90 |
| Subcategory: | Microcontrollers - MCU |
| Watchdog Timers: | Watchdog Timer |
| Unit Weight: | 0.046530 oz |
