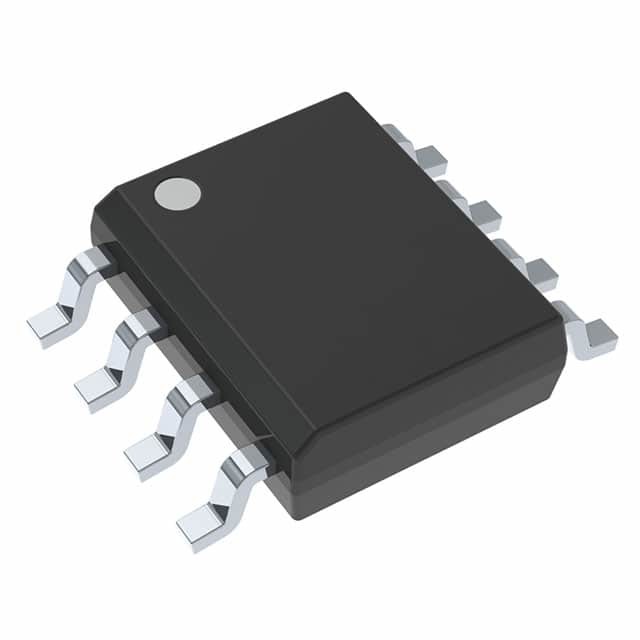

LMC555CMX/NOPB / SOIC-8 / Timers & Support Products
The LMC555 device is a CMOS version of the industry standard 555 series general-purpose timers. In addition to the standard package (SOIC, VSSSOP, and PDIP) the LMC555 is also available in a chipsized package (8-bump DSBGA) using TI's DSBGA package technology. The LMC555 offers the same capability of generating accurate time delays and frequencies as the LM555 but with much lower power dissipation and supply current spikes. When operated as a one-shot, the time delay is precisely controlled by a single external resistor and capacitor. In the astable mode the oscillation frequency and duty cycle are accurately set by two external resistors and one capacitor. The use of TI's LMCMOS process extends both the frequency range and the low supply capability.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Timers & Support Products |
| LMC555 | |
| Standard | |
| 1 Timer | |
| 15 V | |
| 1.5 V | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SOIC-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Height: | 1.45 mm |
| High Level Output Current: | 50 mA |
| Length: | 4.9 mm |
| Low Level Output Current: | - 10 mA |
| Operating Supply Current: | 50 uA |
| Pd - Power Dissipation: | 740 mW |
| Product Type: | Timers & Support Products |
| Propagation Delay - Max: | 100 ns (Typ) at 5 V |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Clock & Timer ICs |
| Width: | 3.9 mm |
| Unit Weight: | 0.002677 oz |
