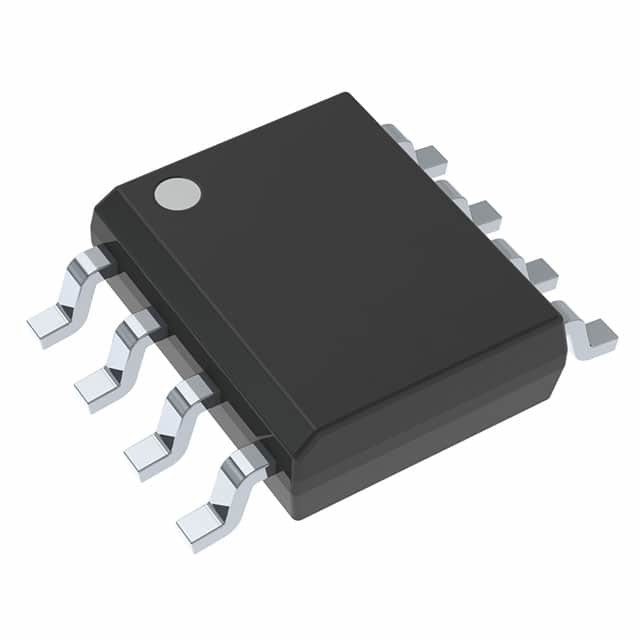

SN75LBC176AD / SOIC-8 / RS-485 Interface IC
The SN65LBC176A, SN65LBC176AQ, and SN75LBC176A differential bus transceivers are monolithic, integrated circuits designed for bidirectional data communication on multipoint bustransmission lines. They are designed for balanced transmission lines and are compatible with ANSI standard TIA/EIA-485-A and ISO 8482. The A version offers improved switching performance over its predecessors without sacrificing significantly more power.
The SN65LBC176A, SN65LBC176AQ, and SN75LBC176A combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, which can externally connect together to function as a direction control. The driver differential outputs and the receiver differential inputs connect internally to form a differential input /output (I/O) bus port that is designed to offer minimum loading to the bus whenever the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications. Very low device supply current can be achieved by disabling the driver and the receiver.
Product Attribute | Attribute Value |
---|---|
Texas Instruments | |
Product Category: | RS-485 Interface IC |
SMD/SMT | |
SOIC-8 | |
SN75LBC176A | |
Transceiver | |
30 Mb/s | |
1 Driver | |
1 Receiver | |
Half Duplex | |
5.25 V | |
4.75 V | |
15 mA | |
0 C | |
+ 70 C | |
12 kV | |
Tube | |
Brand: | Texas Instruments |
Operating Supply Voltage: | 5 V |
Product: | RS-485 Transceivers |
Product Type: | RS-485 Interface IC |
Shutdown: | Shutdown |
Factory Pack Quantity: | 75 |
Subcategory: | Interface ICs |
Unit Weight: | 0.002561 oz |
