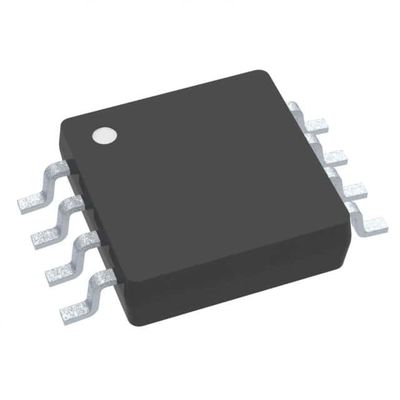

SN65HVD72DGKR / VSSOP-8 / RS-485 Interface IC
These devices have robust 3.3-V drivers and receivers in a small package for demanding industrial applications. The bus pins are robust to ESD events with high levels of protection to Human-Body Model and IEC Contact Discharge specifications.
Each of these devices combines a differential driver and a differential receiver which operate from a single 3.3-V power supply. The driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. These devices feature a wide common-mode voltage range making the devices suitable for multi-point applications over long cable runs. These devices are characterized from –40°C to 125°C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | RS-485 Interface IC |
| SMD/SMT | |
| VSSOP-8 | |
| SN65HVD72 | |
| Transceiver | |
| 250 kb/s | |
| 1 Driver | |
| 1 Receiver | |
| Half Duplex | |
| 3.6 V | |
| 3 V | |
| 950 uA | |
| - 40 C | |
| + 125 C | |
| 15 kV | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Input Voltage: | 3.3 V |
| Operating Supply Voltage: | 3.3 V |
| Output Current: | 60 mA, 8 mA |
| Output Voltage: | 2 V |
| Product: | RS-485 Transceivers |
| Product Type: | RS-485 Interface IC |
| Propagation Delay Time: | 0.7 us |
| Shutdown: | No Shutdown |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Interface ICs |
| Unit Weight: | 0.000705 oz |
