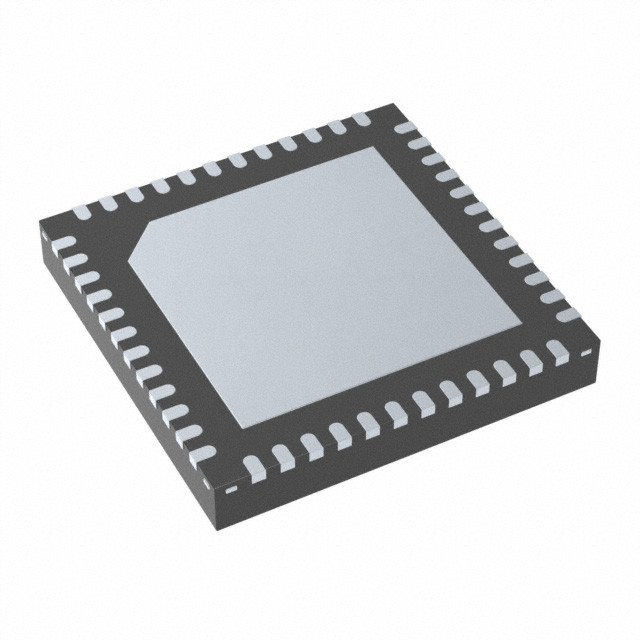

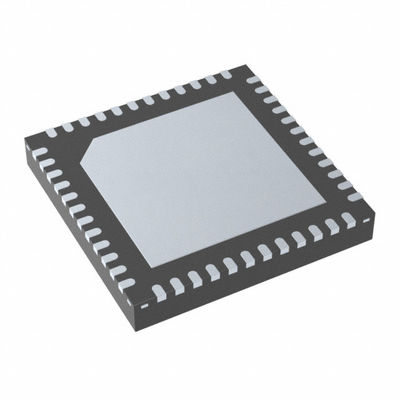

CC1312R1F3RGZR / VQFN-48 / RF Microcontrollers - MCU
The SimpleLink" CC1312R device is a multiprotocol Sub-1 GHz wireless microcontroller (MCU) supportincEEE 802.15.40. IPv6-enabled smart obiects (6LoWPAN). MIOTY, Wi-SUN, proprietary systems, including the15.4-Stack (Sub-1 GHz). The device is optimized for low-power wireless communication and advancecsensing in building security systems, HVAC, smart meters, medical, wired networking, portable electronicshome theater & entertainment, and connected peripherals markets. The highlighted features of this deviceinclude:
• Flexible Sub-1 GHz radio supporting industry standard frequency bands (315 MHz, 433 MHz, 868 MHz.
900 MHz, and more) to meet the industrial needs.
• Wide flexibility of protocol stack support in the SimpleLinktm CC13x2 and CC26x2 Software Development Kit(SDK) including complete SimpleLinkTm 15.4-Stack (Sub-1 GHz) solution.
• Maximum transmit power of +14 dBm at Sub-1 GHz with 24.9 mA current consumption.
• Longer battery life wireless applications with low standby current of 0.85 uA and full RAM retention.
• Industrial temperature ready with lowest standby current of 11 µA at 105°C.
• Advanced sensing with a programmable, autonomous ultra-low power Sensor Controller CPU with fast wakeup capability. As an example, the sensor controller is capable of 1-Hz ADC sampling at 1 µA system current.
• Low SER (Soft Error Rate) FIT (Failure-in-time) for long operation lifetime with no disruption for industrial markets with always-on SRAM parity against corruption due to potential radiation events.
• Dedicated software controlled radio controller (Arm® Cortex®-M0) providing flexible low-power RF transceiver capability to support multiple physical layers and RF standards.
• Excellent radio sensitivity (-121 dBm) and robustness (selectivity and blocking) performance for SimpleLink™ long-range mode.
The CC1312R device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, Bluetooth Low Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs that all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visit SimpleLink™ MCU platform.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | RF Microcontrollers - MCU |
| ARM Cortex M4F | |
| 431 MHz to 527 MHz, 861 MHz to 1054 MHz, 1069 MHz to 1329 MHz | |
| 32 bit | |
| 352 kB | |
| 80 kB | |
| 48 MHz | |
| 12 bit | |
| 1.8 V | |
| 3.8 V | |
| + 85 C | |
| VQFN-48 | |
| SMD/SMT | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Data RAM Type: | SRAM |
| Interface Type: | I2C, I2S, SSI, UART |
| Minimum Operating Temperature: | - 40 C |
| Moisture Sensitive: | Yes |
| Number of I/Os: | 30 I/O |
| Operating Supply Voltage: | 1.8 V to 3.8 V |
| Product Type: | RF Microcontrollers - MCU |
| Program Memory Type: | Flash |
| Series: | CC1312R |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Wireless & RF Integrated Circuits |
| Technology: | Si |
| Unit Weight: | 0.007055 oz |
