XTR305IRGWR / Sensor Interface / Texas Instruments / SOIC-8 /
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF cap load and up to 40- MHz up/down translation at 50 pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO). LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Sensor Interface |
| RoHS: | Details |
| Analog Current/Voltage Output Driver | |
| 22 V | |
| 5 V | |
| 1.8 mA | |
| - 55 C | |
| + 125 C | |
| SMD/SMT | |

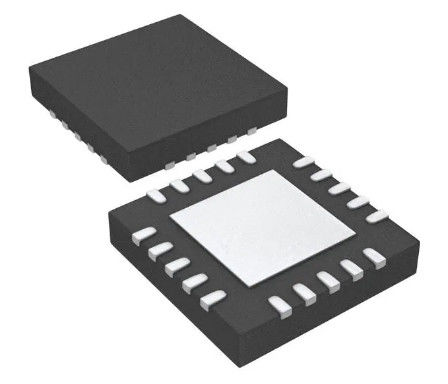

| VQFN-20 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Ib - Input Bias Current: | 20 nA |
| Moisture Sensitive: | Yes |
| Number of Channels: | 1 Channel |
| Output Current: | 20 mA |
| Output Voltage: | 10 V |
| Product: | Signal Conditioners |
| Product Type: | Sensor Interface |
| Reference Voltage: | 4 V |
| Series: | XTR305 |
| Factory Pack Quantity: | 2000 |
| Subcategory: | Interface ICs |
| Unit Weight: | 0.002275 oz |
