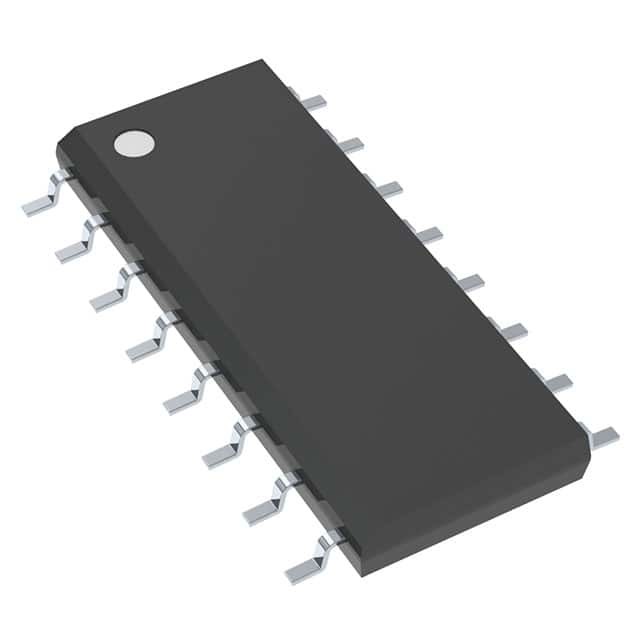

DS26C32ATMX/NOPB / SOIC-Narrow-16 / RS-422 Interface IC
The DS26C32A is a quad differential line receiverdesigned to meet the RS-422, RS-423, and FederalStandards 1020 and 1030 for balanced andunbalanced digital data transmission, while retainingthe low power characteristics of CMOS
The DS26C32A has an input sensitivity of 200 mVover the common mode input voltage range of +7VThe DS26C32A features internal pull-up and pull-down resistors which prevent output oscillation onunused channels.
The DS26C32A provides an enable and disablefunction common to all four receivers. It also featuresTRI-STATE outputs with 6 mA source and sinkcapability. This product is pin compatible with theDS26LS32A and the AM26LS32
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | RS-422 Interface IC |
| SMD/SMT | |
| SOIC-Narrow-16 | |
| DS26C32AT | |
| 4 Receiver | |
| 5.5 V | |
| 4.5 V | |
| 23 mA | |
| - 40 C | |
| + 85 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Operating Supply Voltage: | 5 V |
| Product Type: | RS-422 Interface IC |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Interface ICs |
| Unit Weight: | 0.019312 oz |
