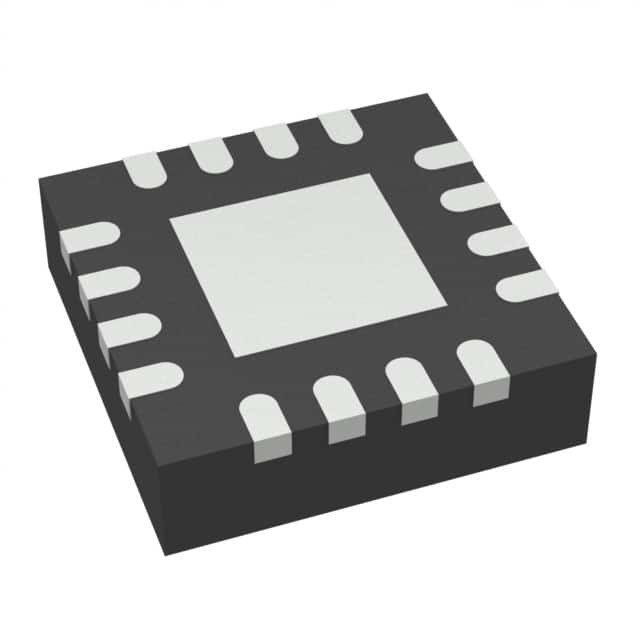

ADS7854IRTER / WQFN-16 / Data Converter ICs
The ADS8354,ADS7854, and ADS7254 belong to afamilyofpin-compatible,dual,high-speedsimultaneous-sampling, analog-to-digital converters(ADCs) that support fully-differential analog inputs
Each device includes two individually programmablereference sources that can be used for system-levelgain calibration. Also, a flexible serial interface thatcan operate over a wide power-supply range enableseasy communication with a large variety of hostcontrollers.Powerconsumption for a giventhroughput can be optimized by using the two low-power modes supported by the device. All devicesare fully specified over the extended industrialtemperature range (-40°C to 125°C)and areavailable in pin-compatible, WQFN-16(3-mm x3-mm) and TSSOP-16 packages.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Analog to Digital Converters - ADC |
| ADS7854 | |
| SMD/SMT | |
| WQFN-16 | |
| 14 bit | |
| 2 Channel | |
| SPI | |
| 1 MS/s | |
| SAR | |
| 4.5 V to 5.5 V | |
| 1.65 V to 5.5 V | |
| 88 dB | |
| - 40 C | |
| + 125 C | |
| Reel | |
| Brand: | Texas Instruments |
| Features: | Small Size |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 4.5 V to 5.5 V |
| Power Consumption: | 45 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | External, Internal |
| SINAD - Signal to Noise and Distortion Ratio: | 84.6 dB |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Data Converter ICs |
| Supply Voltage - Max: | 5.5 V |
| Supply Voltage - Min: | 4.5 V |
