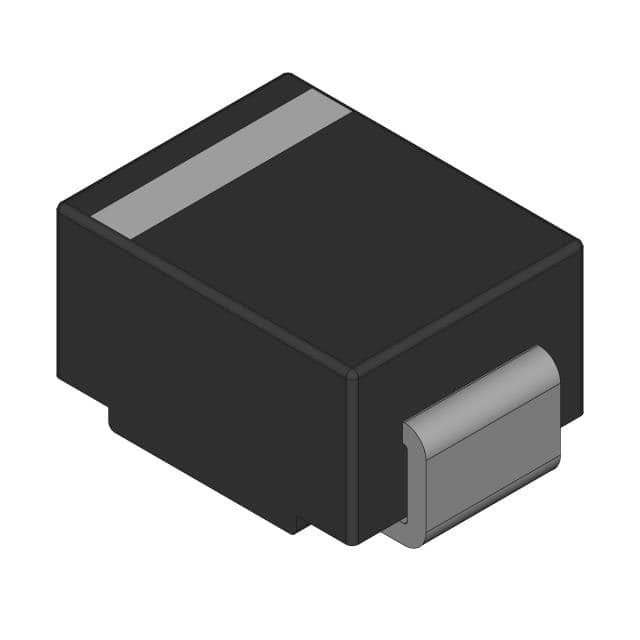

1SMB5922BT3G / SMB / Discrete Semiconductors
• Zener Voltage Range − 3.3 V to 200 V
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Flat Handling Surface for Accurate Placement
• Package Design for Top Side or Bottom Circuit Board Mounting
• AEC−Q101 Qualified and PPAP Capable − SZ1SMB59xxT3G
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• These are Pb−Free Devices*
| Product Attribute | Attribute Value |
|---|---|
| onsemi | |
| Product Category: | Zener Diodes |
| 1SMB5922B | |
| SMD/SMT | |
| SMB | |
| 7.5 V | |
| 5 % | |
| 3 W | |
| 200 mA | |
| 3 Ohms | |
| - 65 C | |
| + 150 C | |
| Single | |
| 50 mA | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | onsemi |
| Height: | 2.3 mm |
| Ir - Maximum Reverse Leakage Current: | 5 uA |
| Ir - Reverse Current: | 5 uA |
| Length: | 4.32 mm |
| Product Type: | Zener Diodes |
| Factory Pack Quantity: | 2500 |
| Subcategory: | Diodes & Rectifiers |
| Termination Style: | SMD/SMT |
| Vf - Forward Voltage: | 1.5 V |
| Voltage Temperature Coefficient: | - |
| Width: | 3.56 mm |
| Unit Weight: | 0.003386 oz |
