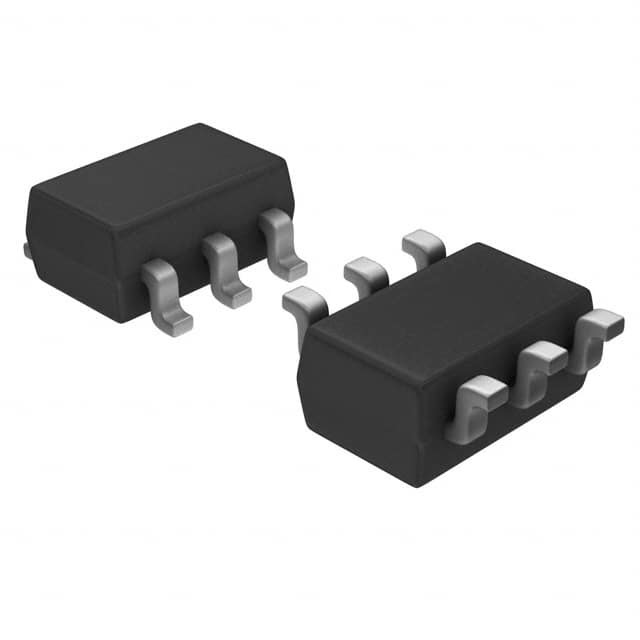

FDC6561AN / SSOT-6 / Discrete Semiconductors
These N−Channel Logic Level MOSFETs are produced using onsemi’s advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance and yet maintain low gate charge for superior switching performance. These devices are well suited for all applications where small size is desireable but especially low cost DC/DC conversion in battery powered systems.
| Product Attribute | Attribute Value |
|---|---|
| onsemi | |
| Product Category: | MOSFET |
| Si | |
| SMD/SMT | |
| SSOT-6 | |
| N-Channel | |
| 2 Channel | |
| 30 V | |
| 2.5 A | |
| 95 mOhms | |
| - 20 V, + 20 V | |
| 1 V | |
| 3.2 nC | |
| - 55 C | |
| + 150 C | |
| 900 mW | |
| Enhancement | |
| PowerTrench | |
| FDC6561AN | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | onsemi / Fairchild |
| Configuration: | Dual |
| Fall Time: | 10 ns |
| Forward Transconductance - Min: | 5 S |
| Height: | 1.1 mm |
| Length: | 2.9 mm |
| Product: | MOSFET Small Signal |
| Product Type: | MOSFET |
| Rise Time: | 10 ns |
| Factory Pack Quantity: | 3000 |
| Subcategory: | MOSFETs |
| Transistor Type: | 2 N-Channel |
| Type: | MOSFET |
| Typical Turn-Off Delay Time: | 12 ns |
| Typical Turn-On Delay Time: | 6 ns |
| Width: | 1.6 mm |
| Part # Aliases: | FDC6561AN_NL |
| Unit Weight: | 0.001270 oz |
