Name: DMN55D0UT-7 / SOT-523-3 / MOSFET
Brand: HAOXIN HK ELECTRONIC TECHNOLOGY CO. LIMITED
SKU: DMN55D0UT-7
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Packaging Details: Standard / New / Original

Vds - Drain-Source Breakdown Voltage: 50 V

Id - Continuous Drain Current: 160 MA

Rds On - Drain-Source Resistance: 4 Ohms

Vgs - Gate-Source Voltage: - 12 V, + 12 V

Qg - Gate Charge: 295 PC

Basic Infomation

Place of Origin: China

Brand Name: Diodes Incorporated

Model Number: DMN55D0UT-7

Payment & Shipping Terms

Packaging Details: SOT-523-3

Delivery Time: In stock

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Contact us

Gallery

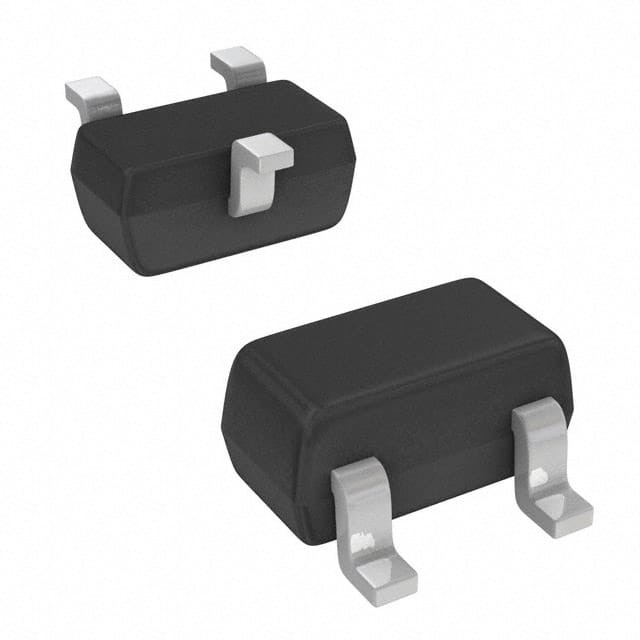

DMN55D0UT-7 / SOT-523-3 / MOSFET

Product Description

DMN55D0UT-7 / SOT-523-3 / MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Product Attribute	Attribute Value
Manufacturer:	Diodes Incorporated
Product Category:	MOSFET
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	SOT-523-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	50 V
Id - Continuous Drain Current:	160 mA
Rds On - Drain-Source Resistance:	4 Ohms
Vgs - Gate-Source Voltage:	- 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage:	700 mV
Qg - Gate Charge:	295 pC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	200 mW
Channel Mode:	Enhancement
Series:	DMN55
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Diodes Incorporated
Configuration:	Single
Forward Transconductance - Min:	180 mS
Height:	0.75 mm
Length:	1.6 mm
Product:	MOSFET Small Signal
Product Type:	MOSFET
Factory Pack Quantity:	3000
Subcategory:	MOSFETs
Transistor Type:	1 N-Channel
Width:	0.8 mm
Unit Weight:	0.000071 oz

DMN55D0UT-7 / SOT-523-3 / MOSFET 0

DMN55D0UT-7 / SOT-523-3 / MOSFET 1

DMN55D0UT-7 / SOT-523-3 / MOSFET 2

DMN55D0UT-7 / SOT-523-3 / MOSFET 3
