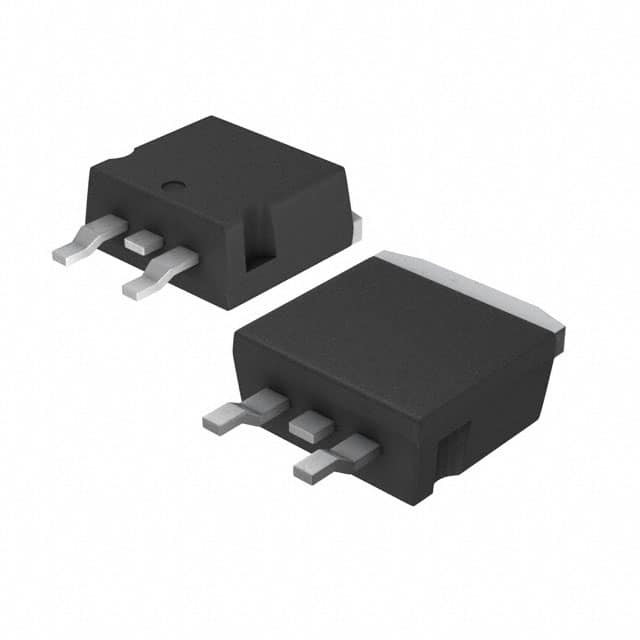

STB75NF75T4 / TO-263-3 / Discrete Semiconductors
Description
This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications. It is also intended for any applications with low gate drive requirements.
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | MOSFET |
| Si | |
| SMD/SMT | |
| TO-263-3 | |
| N-Channel | |
| 1 Channel | |
| 75 V | |
| 80 A | |
| 11 mOhms | |
| - 20 V, + 20 V | |
| 3 V | |
| 160 nC | |
| - 55 C | |
| + 175 C | |
| 300 W | |
| Enhancement | |
| STripFET | |
| STB75NF75 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | STMicroelectronics |
| Configuration: | Single |
| Fall Time: | 30 ns |
| Forward Transconductance - Min: | 20 S |
| Height: | 4.6 mm |
| Length: | 10.4 mm |
| Product Type: | MOSFET |
| Rise Time: | 100 ns |
| Factory Pack Quantity: | 1000 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 66 ns |
| Typical Turn-On Delay Time: | 25 ns |
| Width: | 9.35 mm |
| Unit Weight: | 0.139332 oz |
