REF02BU / SOIC-8 / Power Management ICs
Description

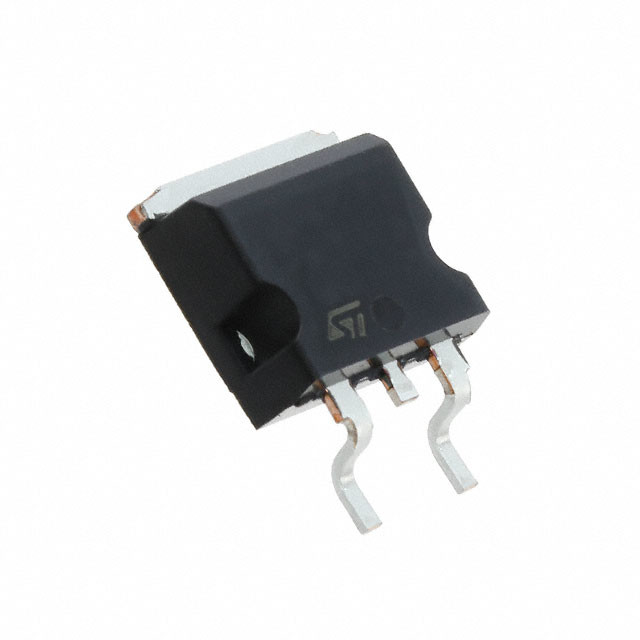

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shift converters.
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | MOSFET |
| Si | |
| SMD/SMT | |
| D2PAK-3 | |
| N-Channel | |
| 1 Channel | |
| 600 V | |
| 34 A | |
| 93 mOhms | |
| - 20 V, + 20 V | |
| 3 V | |
| 56 nC | |
| - 55 C | |
| + 150 C | |
| 250 W | |
| Enhancement | |
| AEC-Q101 | |
| MDmesh | |
| STB45N60DM2AG | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | STMicroelectronics |
| Configuration: | Single |
| Fall Time: | 6 ns |
| Height: | 4.6 mm |
| Length: | 10.4 mm |
| Product: | Power MOSFETs |
| Product Type: | MOSFET |
| Rise Time: | 27 ns |
| Factory Pack Quantity: | 1000 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel Power MOSFET |
| Type: | High Voltage |
| Typical Turn-Off Delay Time: | 85 ns |
| Typical Turn-On Delay Time: | 29 ns |
| Width: | 9.35 mm |
| Unit Weight: | 0.139332 oz |
