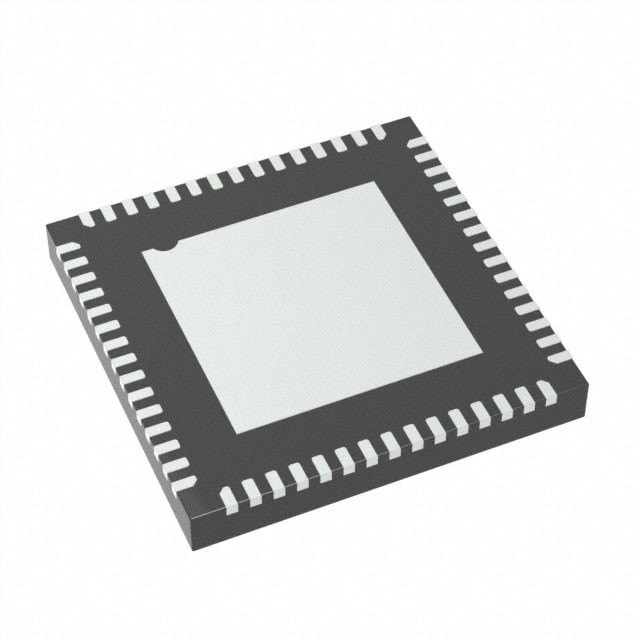

DS90UB926QSQE/NOPB / Display Interface IC 5-85 MHz 24-bit Clr FPD-Link III Dserial
The DS90UB926Q-Q1 deserializer, in conjunction with the DS90UB925Q-Q1 serializer, provides a complete digital interface for concurrent transmission of high-speed video, audio, and control data for automotive display and image-sensing applications.
This chipset translates a parallel RGB video interface into a single-pair high-speed serialized interface. The serial bus scheme, FPD-Link III, supports full duplex of high-speed forward data transmission and lowspeed backchannel communication over a single differential link. Consolidation of video data and control over a single differential pair reduces the interconnect size and weight, while also eliminating skew issues and simplifying system design.
The DS90UB926Q-Q1 deserializer recovers the RGB data, three video control signals, and four synchronized I2S audio signals. The device extracts the clock from a high-speed serial stream. An output LOCK pin provides the link status if the incoming data stream is locked, without the use of a training sequence or special SYNC patterns, as well as a reference clock.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Display Interface IC |
| RoHS: | Details |
| SMD/SMT | |
| WQFN-60 | |
| DS90UB926Q-Q1 | |
| Deserializer | |
| 85 MHz | |
| 3.3 V | |
| 3.3 V | |
| 125 mA | |
| - 40 C | |
| + 105 C | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Description/Function: | 24-bit Color FPD-Link III Deserializer with Bidirectional Control Channel |
| Features: | BIST |
| Interface Type: | I2C |
| Moisture Sensitive: | Yes |
| Operating Supply Voltage: | 3.3 V |
| Output Type: | LVCMOS |
| Product Type: | Display Interface IC |
| Factory Pack Quantity: | 250 |
| Subcategory: | Interface ICs |
| Unit Weight: | 0.007788 oz |
