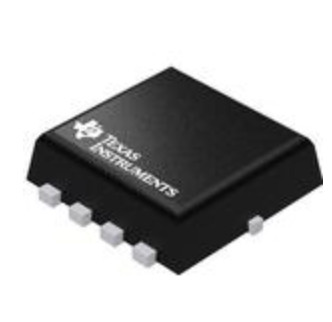

CSD17578Q3AT / SMD/SMT / Texas Instruments / VSONP-8 / MOSFETs
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
6.2 Trademarks
NexFET, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | MOSFET |
| RoHS: | Details |
| Si | |
| SMD/SMT | |
| VSONP-8 | |
| N-Channel | |
| 1 Channel | |
| 30 V | |
| 20 A | |
| 8.2 mOhms | |
| - 20 V, + 20 V | |
| 1.5 V | |
| 7.9 nC | |
| - 55 C | |
| + 150 C | |
| 37 W | |
| Enhancement | |
| NexFET | |
| CSD17578Q3A | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Configuration: | Single |
| Fall Time: | 1 ns |
| Forward Transconductance - Min: | 48 S |
| Height: | 0.9 mm |
| Length: | 3.15 mm |
| Product Type: | MOSFET |
| Rise Time: | 6 ns |
| Factory Pack Quantity: | 250 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 13 ns |
| Typical Turn-On Delay Time: | 2 ns |
| Width: | 3 mm |
| Unit Weight: | 0.000967 oz |
