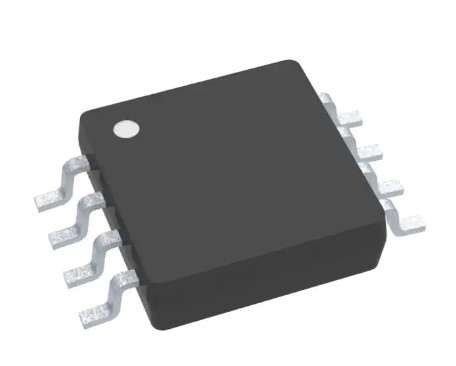

THVD1510DGK / SMD/SMT / Texas Instruments / VSSOP-8 / Tube
• Meets or Exceeds the Requirements of the TIA/EIA-485A Standard • 4.5 V to 5.5 V Supply Voltage • Integrated Bus I/O Protection – ± 30 kV HBM ESD – ± 18 kV IEC 61000-4-2 ESD Contact Discharge – ± 25 kV IEC 61000-4-2 ESD Air-Gap Discharge – ± 4 kV IEC 61000-4-4 Electrical Fast Transient • Extended Operational Common-mode: ± 15 V • Low EMI 500 kbps and 50 Mbps Data Rates • Extended Temperature Range: -40°C to 125°C • Large Receiver Hysteresis for Noise Rejection • Low Power Consumption – Low Standby Supply Current: < 1 µA – Current During Operation: < 1 mA • Glitch-Free Power-Up/Down for Hot Plug-in Capability • Open, Short, and Idle Bus Failsafe • 1/8 Unit Load Options (Up to 256 Bus Nodes) • Small-Size VSSOP Packages Save Board Space or SOIC for Drop-in Compatibility
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | RS-485 Interface IC |
| RoHS: | Details |
| SMD/SMT | |
| VSSOP-8 | |
| THVD1510 | |
| Transceiver | |
| 500 kb/s | |
| 1 Driver | |
| 1 Receiver | |
| Half Duplex | |
| 5.5 V | |
| 4.5 V | |
| 700 uA | |
| - 40 C | |
| + 125 C | |
| 18 kV | |
| Tube | |
| Brand: | Texas Instruments |
| Input Voltage: | 4.5 V to 5.5 V |
| Operating Supply Voltage: | 4.5 V to 5.5 V |
| Output Current: | 8 mA, 60 mA |
| Pd - Power Dissipation: | 250 mW |
| Product: | RS-485 Transceivers |
| Product Type: | RS-485 Interface IC |
| Propagation Delay Time: | 50 ns, 350 ns |
| Shutdown: | No Shutdown |
| Factory Pack Quantity: | 80 |
| Subcategory: | Interface ICs |
| Type: | Transceiver |
| Unit Weight: | 0.001030 oz |
