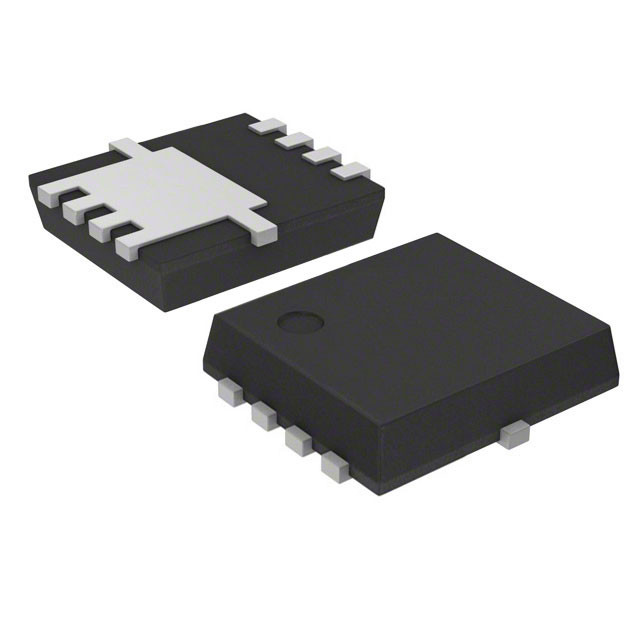

CSD19538Q3A / MOSFET 100-V / N channel NexFET power MOSFET
Applications
• Power Over Ethernet (PoE)
• Power Sourcing Equipment (PSE)
• Motor Control 3
Description
This 100-V, 49-mΩ, SON 3.3-mm × 3.3-mm NexFET™ power MOSFET is designed to minimize conduction losses and reduce board footprint in PoE applications.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | MOSFET |
| RoHS: | Details |
| Si | |
| SMD/SMT | |
| VSONP-8 | |
| N-Channel | |
| 1 Channel | |
| 100 V | |
| 14.4 A | |
| 61 mOhms | |
| - 20 V, + 20 V | |
| 3.2 V | |
| 4.3 nC | |
| - 55 C | |
| + 150 C | |
| 2.8 W | |
| Enhancement | |
| NexFET | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Configuration: | Single |
| Fall Time: | 2 ns |
| Height: | 0.9 mm |
| Length: | 3.15 mm |
| Product Type: | MOSFET |
| Rise Time: | 3 ns |
| Series: | CSD19538Q3A |
|
Factory Pack Quantity: |
2500 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 7 ns |
| Typical Turn-On Delay Time: | 5 ns |
| Width: | 3 mm |
| Unit Weight: | 0.000963 oz |
