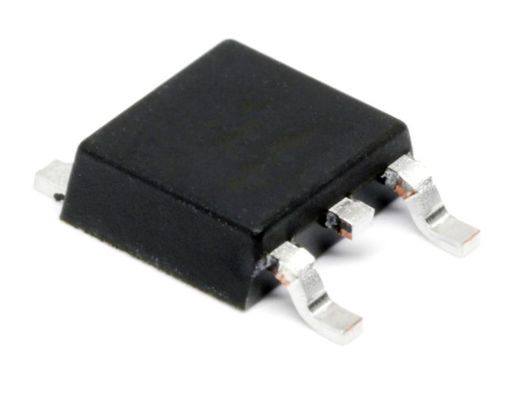

SUD50P06-15-GE3 / Trans MOSFET P-CH 60V 50A 3-Pin(2+Tab) DPAK
Notes:
a. Pulse test; pulse width ≤ 300 μs, duty cycle ≤ 2 %.
b. Guaranteed by design, not subject to production testing.
c. Independent of operating temperature.
| Product Attribute | Attribute Value |
|---|---|
| Vishay | |
| Product Category: | MOSFET |
| Si | |
| SMD/SMT | |
| TO-252-3 | |
| P-Channel | |
| 1 Channel | |
| 60 V | |
| 50 A | |
| 15 mOhms | |
| - 20 V, + 20 V | |
| 3 V | |
| 40 nC | |
| - 55 C | |
| + 150 C | |
| 113 W | |
| Enhancement | |
| TrenchFET | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Vishay Semiconductors |
| Configuration: | Single |
| Fall Time: | 30 ns |
| Forward Transconductance - Min: | 61 S |
| Height: | 2.38 mm |
| Length: | 6.73 mm |
| Product Type: | MOSFET |
| Rise Time: | 9 ns |
| Series: | SUD |
| Factory Pack Quantity: | 2000 |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 P-Channel |
| Typical Turn-Off Delay Time: | 65 ns |
| Typical Turn-On Delay Time: | 8 ns |
| Width: | 6.22 mm |
| Part # Aliases: | SUD50P06-15-BE3 |
| Unit Weight: | 0.011640 oz |
