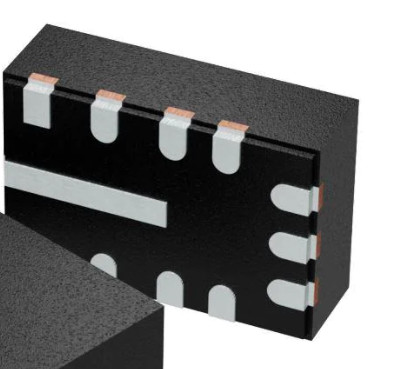

LMR36015FSCQRNXRQ1 Texas Instruments SMD/SMT VQFN-12
The LMR36015-Q1 regulator is an easy-to-use, synchronous, step-down DC/DC converter. With integrated high-side and low-side power MOSFETs, up to 1.5 A of output current is delivered over a wide input voltage range of 4.2 V to 60 V. Tolerance goes up to 66 V. The LMR36015-Q1 uses peak-current-mode control to provide optimal efficiency and output voltage accuracy. Advanced high speed circuitry allows the LMR36015-Q1 to regulate from an input of 20 V to an output of 5 V at a fixed frequency of 2.1 MHz. Precision enable gives flexibility by enabling a direct connection to the wide input voltage or precise control over device start-up and shutdown. The power-good flag, with built-in filtering and delay, offers a true indication of system status eliminating the requirement for an external supervisor.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| VQFN-12 | |
| Buck | |
| Adjustable | |
| 1.5 A | |
| 1 Output | |
| 4.2 V | |
| 60 V | |
| 2.1 MHz | |
| - 40 C | |
| + 150 C | |
| AEC-Q100 | |
| LMR36015-Q1 | |
| Reel | |
| Brand: | Texas Instruments |
| Input Voltage: | 4.2 V to 60 V |
| Moisture Sensitive: | Yes |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 4.2 V |
| Type: | Ultra Small Synchronous |
