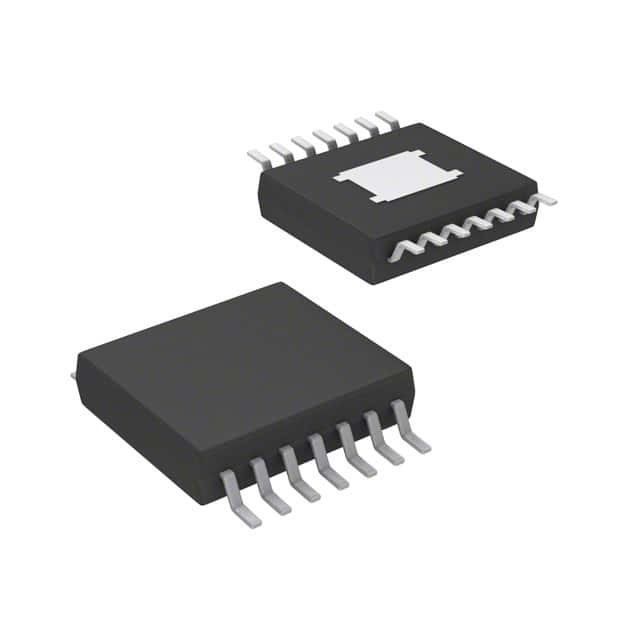

TPS61175QPWPRQ1 / HTSSOP-14 / Switching Voltage Regulators
The TPS61175-Q1 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails.
The TPS61175-Q1 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is either set by an external resistor or an external clock signal. The user can program the switching frequency from 200-kHz to 2.2-MHz.
The device features a programmable soft-start function to limit inrush current during start-up, and has built-in other protection features, such as pulseby-pulse over current limit and thermal shutdown. The TPS61175-Q1 is available in 14-pin HTSSOP package with PowerPAD.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| SMD/SMT | |
| HTSSOP-14 | |
| Boost | |
| 2.9 V to 38 V | |
| 3.8 A | |
| 1 Output | |
| 2.9 V | |
| 18 V | |
| 3.5 mA | |
| 2.2 MHz | |
| - 40 C | |
| + 125 C | |
| AEC-Q100 | |
| TPS61175-Q1 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Height: | 1.2 mm |
| Length: | 5 mm |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 3 mA |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 2000 |
| Subcategory: | PMIC - Power Management ICs |
| Width: | 4.4 mm |
| Unit Weight: |
0.002212 oz |
