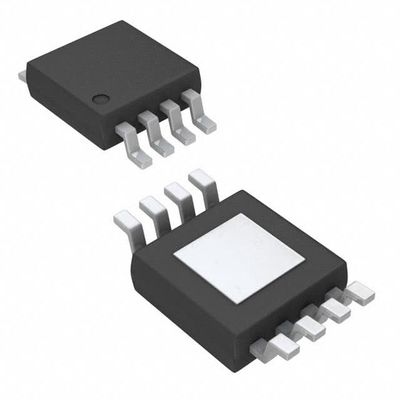

TPS7A6650QDGNRQ1 / MSOP-PowerPad-8 / LDO Voltage Regulators
The TPS7A66-Q1 and TPS7A69-Q1 are low-dropout linear regulators designed for up to 40-V Vin operations. With only 12-µA quiescent current at no load, they are quite suitable for standby microprocessor control-unit systems, especially in automotive applications.
The devices feature integrated short-circuit and overcurrent protection. The devices implement reset delay on power up to indicate the output voltage is stable and in regulation. One can program the delay with an external capacitor. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions
The devices operate in the –40°C to 125°C temperature range. The TPS7A6650EDGNRQ1 device is qualified to AEC-Q100 grade 0, operating in the –40°C to 150°C temperature range. These features suit the devices well for power supplies in various automotive applications.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| MSOP-PowerPad-8 | |
| 5 V | |
| 150 mA | |
| 1 Output | |
| Positive | |
| 12 uA | |
| 4 V | |
| 40 V | |
| 60 dB | |
| Fixed | |
| - 40 C | |
| + 125 C | |
| 300 mV | |
| AEC-Q100 | |
| TPS7A6650-Q1 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Dropout Voltage - Max: | 450 mV |
| Line Regulation: | 5 mV |
| Load Regulation: | 20 mV |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 12 uA |
| Operating Temperature Range: | - 4 |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 2500 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Low Dropout Voltage Regulator |
| Unit Weight: | 0.000649 oz |
