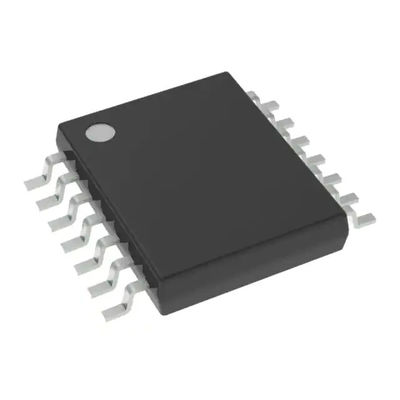

LSF0108PWR / Translation - Voltage Levels Octal Bidir Multi- Vltg Lev Translator
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Translation - Voltage Levels |
| RoHS: | Details |
| LSF0108 | |
| Bidirectional Multi-Voltage Level Translator | |
| SMD/SMT | |
| TSSOP-20 | |
| 950 mV | |
| 5.5 V | |
| - 40 C | |
| + 125 C | |
| 1.3 ns | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Data Rate: | 200 Mb/s |
| Features: | Output enable |
| High Level Output Current: | 64 mA |
| Input Type: | CMOS, TTL |
| Low Level Output Current: | 64 mA |
| Number of Channels: | 8 Channel |
| Operating Supply Current: | 128 mA |
| Operating Temperature Range: | - 40 C to + 125 C |
| Output Type: | Open Drain, Push-Pull |
| Product Type: | Translation - Voltage Levels |
|
Factory Pack Quantity: |
2000 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.006737 oz |
Description
The LSF family of devices supports bidirectional voltage translation without the need for DIR pin which minimizes system effort (for PMBus, I2C, SMBus, and so forth). The LSF family of devices supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF cap load and up to 40- MHz up/down translation at 50 pF cap load which allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which makes it compatible with TTL levels in industrial and telecom applications. The LSF family is able to set up different voltage translation levels on each channel which makes it very flexible.
