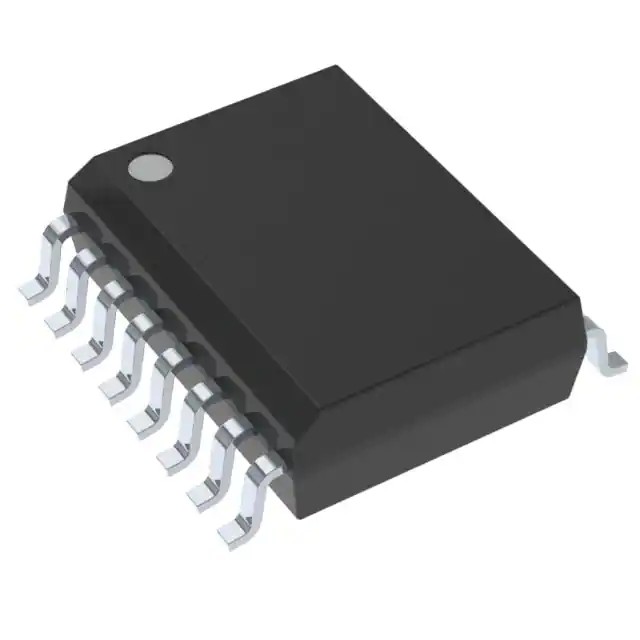

SN74LV4T125PWR / Buffers & Line Drivers SGL Pwr Supply Quad Buffer GATE
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Buffers & Line Drivers |
| RoHS: | Details |
| 4 Input | |
| 4 Output | |
| Non-Inverting | |
| - 16 mA | |
| 16 mA | |
| 2 uA | |
| 5.5 V | |
| 1.6 V | |
| 20 uA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| TSSOP-14 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Logic Type: | True |
| Output Type: | 3-State |
| Product Type: | Buffers & Line Drivers |
| Series: | SN74LV4T125 |
|
Factory Pack Quantity: |
2000 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.006702 oz |
Description
SN74LV4T125 is a low-voltage CMOS buffer gate that operates at a wider voltage range for portable, telecom, industrial, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels.
The input is designed with a lower threshold circuit to match 1.8-V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level-up translation. In addition, the 5-V tolerant input pins enable down translation (for example, 3.3 V to 2.5 V output at VCC = 2.5 V). The wide VCC range of 1.8 V to 5.5 V allows the generation of desired output levels to connect to controllers or processors.
The SN74LV4T125 device is designed with currentdrive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.
