Name: LM1117MPX-ADJ/NOPB Ldo Switching Regulator 800MA Linear Dropout Regulator
Brand: HAOXIN HK ELECTRONIC TECHNOLOGY CO. LIMITED
SKU: LM1117MPX-ADJ/NOPB
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Output Voltage: 1.25 V To 13.8 V

Output Current: 800 MA

Quiescent Current: 5 MA

Product Type: LDO Voltage Regulators

Date Code: 22+

Packaging Details: Standard/New/Original

Highlight:

LM1117MPX Ldo Switching Regulator

800MA Ldo Switching Regulator

LM1117MPX Linear Dropout Regulator

Basic Infomation

Place of Origin: Philippines

Brand Name: TI

Model Number: LM1117MPX-ADJ/NOPB

Payment & Shipping Terms

Packaging Details: SOT-223-4

Delivery Time: in stock

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: contact us

Gallery

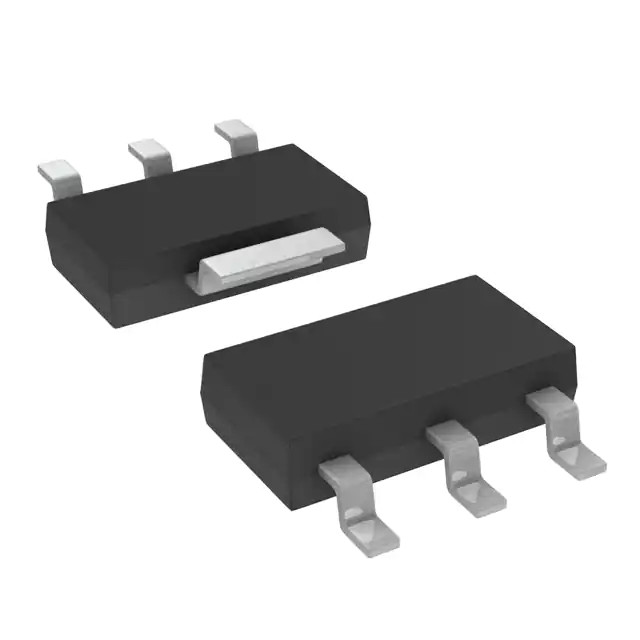

LM1117MPX-ADJ/NOPB Ldo Switching Regulator 800MA Linear Dropout Regulator

Product Description

LM1117MPX-ADJ/NOPB / LDO Voltage Regulators 800MA LDO LINEAR REG

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	LDO Voltage Regulators
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	SOT-223-4
Output Voltage:	1.25 V to 13.8 V
Output Current:	800 mA
Number of Outputs:	1 Output
Polarity:	Positive
Quiescent Current:	5 mA
Input Voltage, Min:	1.4 V
Input Voltage, Max:	15 V
Output Type:	Adjustable
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Dropout Voltage:	1.2 V
Series:	LM1117
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Dropout Voltage - Max:	1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA
Ib - Input Bias Current:	5 mA
Line Regulation:	0.04 %
Load Regulation:	0.2 %
Operating Supply Current:	5 mA
Operating Temperature Range:	- 4
Product Type:	LDO Voltage Regulators
Reference Voltage:	1.262 V
Factory Pack Quantity:	2000
Subcategory:	PMIC - Power Management ICs
Voltage Regulation Accuracy:	1 %
Unit Weight:	0.010229 oz

FEATURES

• For a newer drop-in alternative, see the TLV1117

• For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761

• Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions

• Space-saving SOT-223 and WSON packages

• Current limiting and thermal protection • Output current: 800 mA

• Line regulation: 0.2% (maximum)

• Load regulation: 0.4% (maximum)

• Temperature range: – LM1117: 0°C to +125°C

– LM1117I: –40°C to +125°C

LM1117MPX-ADJ/NOPB Ldo Switching Regulator 800MA Linear Dropout Regulator 0
