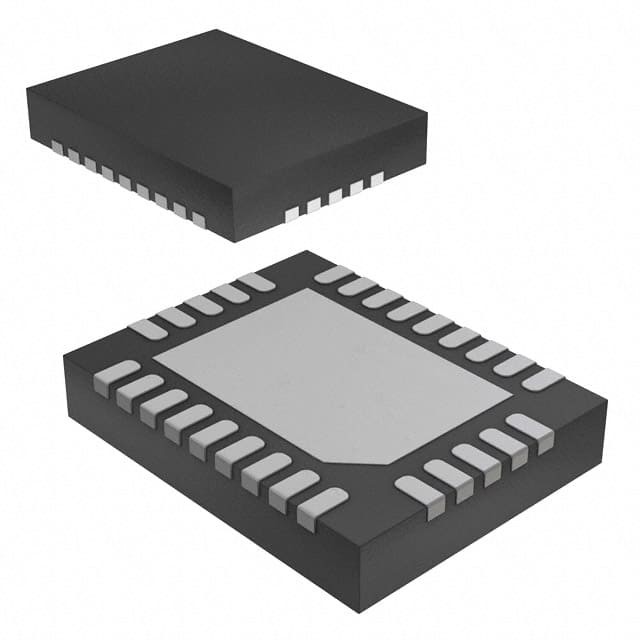

TPS53513RVER / VQFN-CLIP-28 / Switching Voltage Regulators
The TPS53513 device is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low external-component count for space-conscious power systems.
This device features high-performance integrated MOSFETs, accurate 0.5% 0.6-V reference, and an integrated boost switch. Competitive features include very low external-component count, fast loadtransient response, auto-skip mode operation, internal soft-start control, and no requirement for compensation.
A forced continuous conduction mode (FCCM) helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS53513 device is available in a 28-pin VQFN package and is specified from –40°C to +85°C ambient temperature.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| SMD/SMT | |
| VQFN-CLIP-28 | |
| Buck | |
| 600 mV to 5.5 V | |
| 8 A | |
| 1 Output | |
| 1.5 V | |
| 18 V | |
| 850 uA | |
| 1 MHz | |
| - 40 C | |
| + 85 C | |
| TPS53513 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS53513EVM-587 |
| Height: | 1 mm |
| Input Voltage: | 1.5 V to 18 V |
| Length: | 4.5 mm |
| Moisture Sensitive: | Yes |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Tradename: | SWIFT |
| Type: | Synchronous Step-Down Swift Converter |
| Width: | 3.5 mm |
| Unit Weight: | 0.001510 oz |
