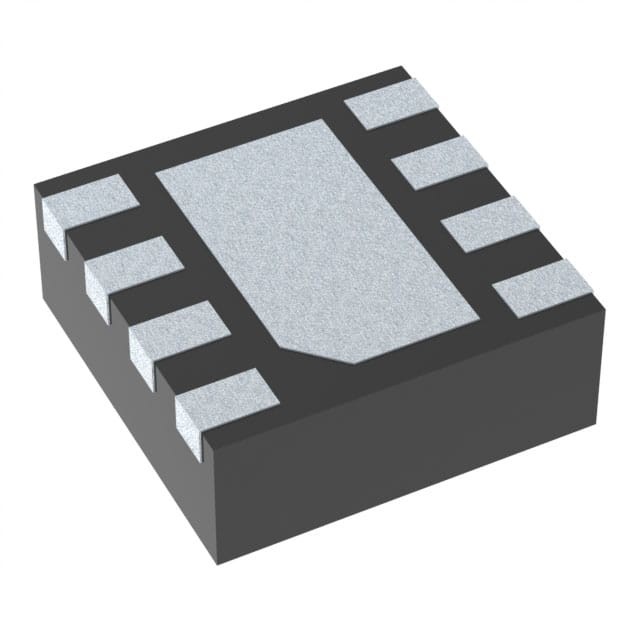

TPS62067QDSGRQ1 / WSON-8 / Switching Voltage Regulators
The TPS62065-Q1 and TPS62067-Q1 device is a highly-efficient synchronous step-down DC-DC converter. The device provides up to 2-A output current.
With an input voltage range of 2.9 V to 6 V the device is a perfect fit for power conversion from a 5-V or 3.3-V system supply rail. The TPS62065-Q1 and TPS62067-Q1 device operates at 3-MHz fixed frequency and enters power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The power save mode is optimized for low output-voltage ripple. For low noise applications, the TPS62065-Q1 device can be forced into fixed frequency PWM mode by pulling the MODE pin high. The TPS62067-Q1 provides an open drain power good output. In the shutdown mode, the current consumption is reduced to 5 µA and an internal circuit discharges the output capacitor. The TPS62065-Q1 and TPS62067-Q1 device is optimized for operation with a tiny 1-µH inductor and a small 10- µF output capacitor to achieve smallest solution size and high regulation performance.
The new product, TPS628502-Q1, offers reduced BOM cost and size, higher efficiency and other features.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| SMD/SMT | |
| WSON-8 | |
| Buck | |
| Adjustable | |
| 2 A | |
| 1 Output | |
| 2.9 V | |
| 6 V | |
| 1 mA | |
| 3 MHz | |
| - 40 C | |
| + 125 C | |
| AEC-Q100 | |
| TPS62067-Q1 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Height: | 0.8 mm |
| Input Voltage: | 3.6 V |
| Length: | 2 mm |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 18 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 2.9 V |
| Type: | Voltage Converter |
| Width: | 2 mm |
| Unit Weight: | 0.000384 oz |
