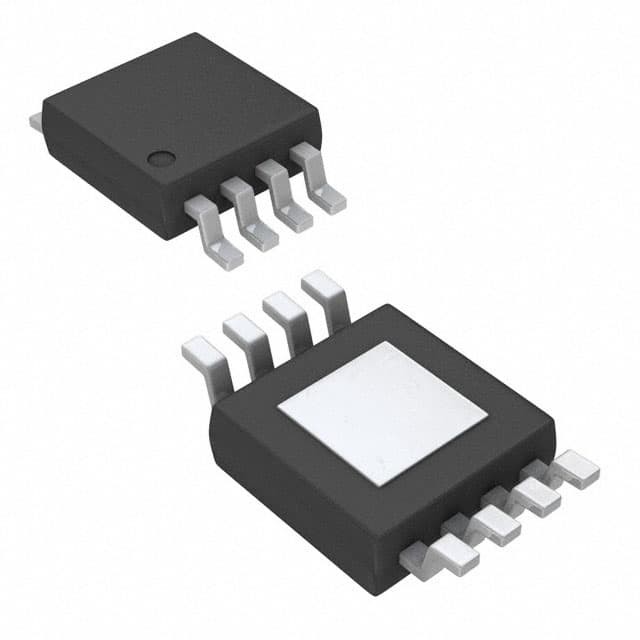

TPS7A4901DGNR / MSOP-8 / LDO Voltage Regulators
The TPS7A49 series of devices are positive, high-voltage (36 V), ultralow-noise (15.4 uVRMs, 72-dBPSRR) linear regulators that can source a 150-mAload.
These linear regulators include a CMOS logic-levelcompatible enable pin and capacitor-programmablesoft-start function that allows for customized powermanagement schemes. Other available featuresinclude built-in current limit and thermal shutdownprotection to safeguard the device and system duringfault conditions.
The TPS7A49 family is designed using bipolartechnology, and is ideal for high-accuracy, highprecision instrumentation applications where cleanvoltage rails are critical to maximize systemperformance. This design makes the device anexcellent choice to power operational amplifiersanalog-to-digital converters (ADCs),digital-to-analogconverters (DACs), and other high-performanceanalog circuitry.
In addition, the TPS7A49 family of linear regulators issuitable for post dc-dc converter regulation. Byfiltering out the output voltage ripple inherent to dc-dcswitching conversion, maximum system performanceis provided in sensitive instrumentation, test andmeasurement, audio, and RF applications.
For applications where positive and negative high-performance rails are required, consider TI'sTPS7A30xx family of negative high-voltage, ultralow-noise linear regulators as well.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| MSOP-8 | |
| 150 mA | |
| 1 Output | |
| Positive | |
| 3 V | |
| 36 V | |
| Adjustable | |
| - 40 C | |
| + 125 C | |
| 260 mV | |
| TPS7A4901 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS7A30-49EVM-567 |
| Dropout Voltage - Max: | 260 mV |
| Load Regulation: | 0.04 % |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 60 uA |
| Operating Temperature Range: | - 4 |
| Output Voltage Range: | 1.194 V to 33 V |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 2500 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Ultralow Noise Positive Linear Regulators |
| Unit Weight: | 0.000861 oz |
